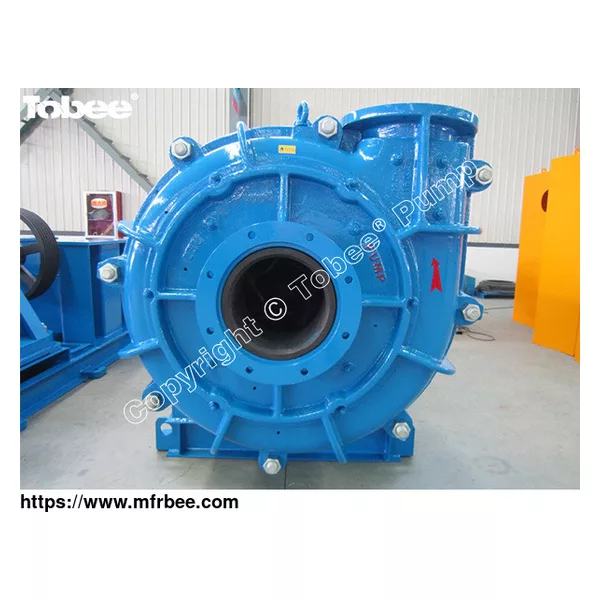

Tobee® AHR rubber lined slurry pumps are similar to AH metal lined slurry pump in structure. The main difference between AH and AHR is the material of wetted parts, which are natural rubber, synthetic rubber or other wear-resistant rubbers. AHR rubber lined slurry pumps are more suitable in delivering strong corrosive or abrasive slurries of small particle size without sharp edges.
Design Features:
√ Heavy duty construction with through-bolt design provides ease of maintenance and minimal downtime.
√ Ductile iron fully lined casing provides durability, strength, safety, and long service life.
√ Large diameter, slow turning, high efficiency impellers designed to achieve maximum wear life and low operating costs.
√ Large, open internal passages designed to reduce internal velocities, maximise wear life and lower operating costs.
√ Thick elastomer or alloy bolt-in liners provide superior corrosion resistance plus offer ease of liner change-out and interchangeability to reduce overall maintenance costs and maximise wear life.
√ Minimal shaft/impeller overhang reduces shaft deflection and increases packing life.
√ Cartridge-style bearing assembly allows for maintenance in a clean environment without removal of the slurry pump, resulting in reliable operation and prolonged bearing life.
√ Grease or oil lubrication bearing assembly options offer ease of maintenance and reduced downtime.
√ Optional dry running shaft seal reduces or eliminates flush water requirements.
√ Effective expeller prolongs packing life while reducing or eliminating flush water requirement.
√ Interchangeability of seal arrangements – full flush, low flow, centrifugal, or mechanical seals may be fitted to any sized slurry pump.
