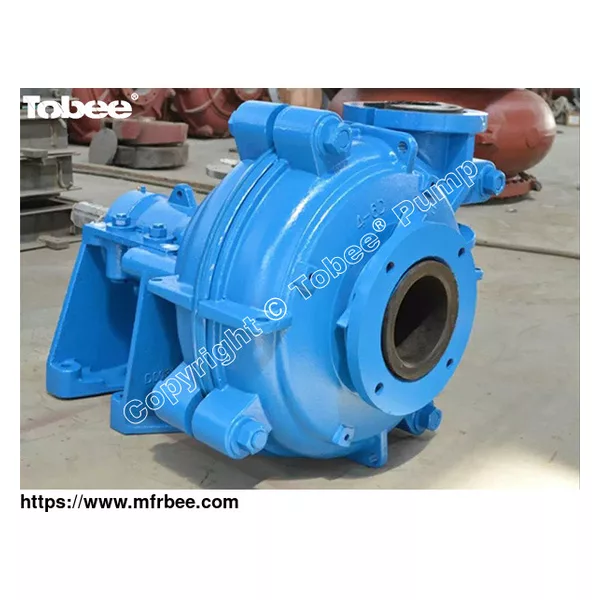

Tobee® 6/4D-AHR Rubber Lined Slurry Pump is similar to 6x4D-AH Metal Lined Slurry Pump in structure. The main difference between AH and AHR is the material of wet parts, which are natural rubber, synthetic rubber or other wear-resistant rubbers. The Rubber Lined Slurry Pumps are more suitable in delivering strong corrosive or abrasive slurries of small particle size without sharp edges.
Advantages
√ Optimized structure is suitable for heavy-duty tasks, ensuring serviceability and longevity.
√ The double-casing design of our heavy duty rubber lined slurry pump allows for axial split. Made of ductile iron, the slurry pump casing is able to withstand major pressure produced within the pumping chamber. Rubber liners are made of wear resistant rubber materials, and do not stick to the outer casing for ease of maintenance and replacement.
√ The slurry pump body is fixed to the pump base or mounting base by several bolts. Users can adjust the clearance between impeller and suction liner easily from underneath the bearing support, or bearing pedestal.
√ Packing gland seal, mechanical seal and expeller seal are available to prevent slurry leakage during pumping operation
