Stainless Steel Grating

Stainless steel bar grating is made by welding or press locking available in varied bearing bar shapes and sizes, especially ideal for flooring and walkway in corrosive environments such as chemical industry, food processing, hydro processing and engineering.

Stainless Steel Gratings
Stainless Steel 304 Grating
Material: SS 304
Panel width: 95mm
Length: 1000mm
Height: 20mm
Distance between Each Ribs: 10mm
Load Carry capacity: 1000Kgs
Application: Grating for the Run of Water Drainage.
Usage: Outdoor & Indoor use.

Stainless Steel Grating, SS 316

Oil Field Flooring Grating:
Grating type: Flooring grate,4' x 8', 316l ss, pitch 25m
Grating, type: Flooring panels,4' x 8', 316l ss, pitch 25mm x 100mm x 5mm serrated,astm standard
Clip: grating, 316l ss, w/m 12mm mild steel bolt, nut and washer

Description:
#316 stainless steel grating with 1-1/2" x 1/8" bearing bars at 1-3/16" o.c. (19 - SGSS-4) 36" wide x 24' long.
#316 stainless steel grating with 1" x 3/16" bearing bars at 1-3/16" o.c. (19 - SGSS-4) 36" wide x 24' long.
#316 saddle clips for the grating.
Grating to be swaged
Grating to have a mill finish
All grating to have a smooth top

Stainless Steel 316 Serrated Grating

Stainless steel 316
Bearing bar 32mm x 5mm serrated open end
Cross bar 6.5mm round bar
Bearing bar pitch 30.16mm
Cross bar pitch 101.6mm
Surface : self colour
Panel size 6096mm x 910mm, 30’ x 28’
Tolerance : Height 0.5mm, thickness 0.3mm

Stainless Steel Bar Grating in Grade 316L and 316

Finishing: Natural ss
Panel size: length=2750mm, panel width=1000mm.
Type of grating: Press-locked stainless steel flat bar grating.
Bearing bars size: flat bars=8mm/thickness x 40mm/ width
Size of the square opening from inside on all sides: 40mm x 40mm
Clear opening : 40mm x 40mm
Bearing bar depth : 40mm.
Without structural supports.

310 Stainless Steel Bar Grating

Stainless smooth bar grating
Serrated top bar grating also available for 310 ss grates.
Size: 2” x 3/16”; 10’

Heavy Duty Stainless Steel Grating
50x50x5
The design load: 14t evenly distributed over a circular surface
Diameter of grate: 1480mm
Support: At the edges.

Stainless Steel (304) Drain Grating
Flat bearing bar type
Size: 1/1/2” x 3/16” smooth.

Stainless Steel Grating
Depth of the grating: 20mm and 600mm wide
Length 2790mm and 1045mm

Bar Size: 2" x 3/16"
Panel Size: 5' x 10'

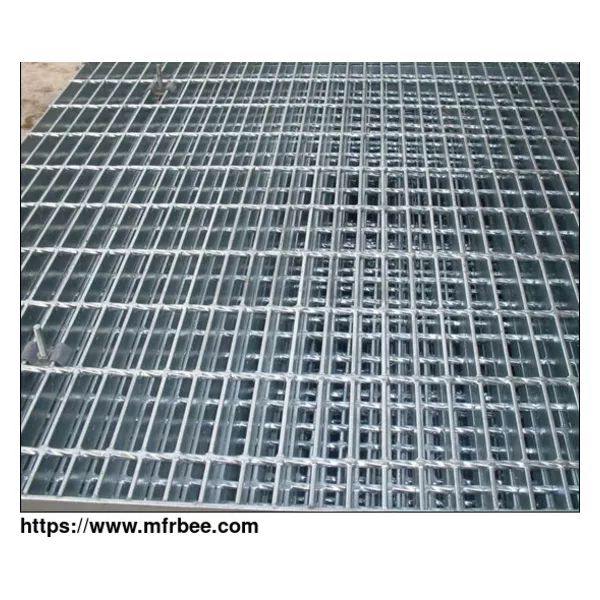

Stainless Steel Bar Grating, Welded Grate
Structure: Cross bar jointing at intersections by welding method.

Stainless Steel Bar Grating, dimensions as following:
Panel size 1000 х 2000 mm
Bearing bars (strips) 30 х 3 mm
Space bar grating 34х38 mm

Stainless Steel ( SS 316 ) Culvert Safety Grates

Design of Culvert Safety Grating

Stainless Steel Safety Grates for Convert Construction

Flat bar size: 75mm x10mm
Bar spacing: 150mm
Horizontal bar: 120mm X15mm
Process:Welding
Description:
Panel size 3000mm wide x 5000mm high
Structure: 75 x 10mm vertical flat bars at 150mm centers welded to 4 Nos. of 120 x 15mm horizontal bars each
Accessories: M24 Bolts

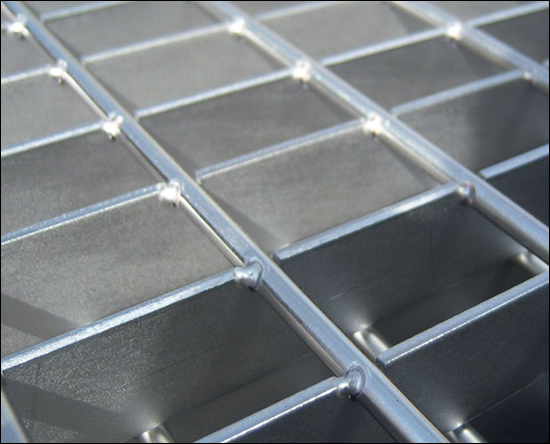

Stainless Grate Panels, Pressure Locked
Panel size: 3x20
Bar grating: 15 space
304 stainless steel grid grating,
Structure: SS pressure locked grating panel
