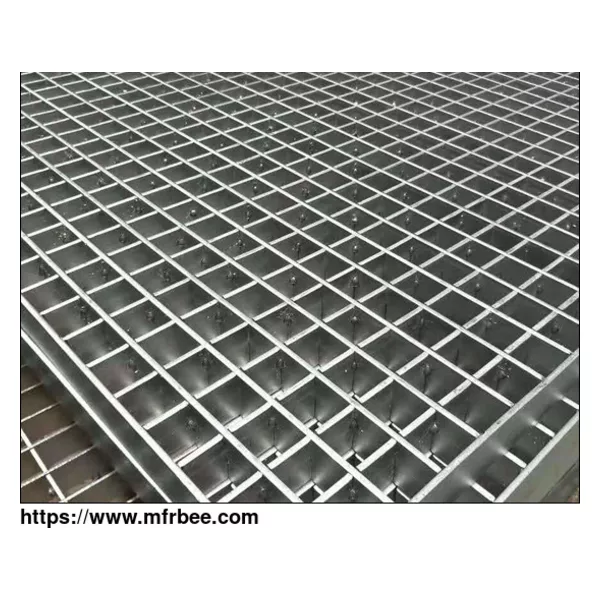

Aluminum Grating

Minimum Order
1
Packaging
N/A
Delivery
15 Days

Aluminum Planking with aluminum expanded metal walking surface
Grate size: (.125”)
Outline:
27.5” wide x 69.187" Long
29.5" wide x 69.187" Long
23.5" wide x 81.187" Long
27.5" wide x 81.187" Long
29.5" wide x 81.187" Long
23.5" wide x 117.187" Long

Aluminum Grating for Water Drainage
Aluminium Gratings 95 x 20 x 1000mm- Spacing: 10mm
Material: Extruded Aluminium Alloy: 6063-T6
Width: 95mm
Length: 1000mm
Height: 20mm
Load Carry capacity: 1000Kgs
Usage: Trench cover walking safety

Serrated Aluminum Grating

Aluminum Serrated Bar Grating
Material : Aluminum 6061-T6
Load Bar Height : 1 inch
Load Bar Thickness : 3/16 inch
Width : 4 feet
Height : 3 feet

Aluminum Walkway Grating

Aluminium grating for roof safety walkway and for ditch of mechanical workshop
Ditch width: 0.90m.
Ditch length: 12.50m
Grating aluminum walkway for people, trucks, equipment passing
The alu grates can be lifted, maneuvered and installed easily.

Technical Information provided for aluminum grating grills delivered:
Grating aluminum standard width and length;
Weight of each standard aluminum grill per unit and per square meter;
The weight each grid supports or resists per standard unit and per square meter;
If the grating can be cut with security and served for the requested use;
Type of welding and equipment to be used to install the aluminum grating in the field;
Safety factor of aluminum gratings;
How the aluminum grating is maintained;
Guarantee and life time of the aluminum gratings;
Advantages and benefits of the grating aluminum versus other materials, such as iron, steel, stainless steel, FRP, etc;
How much in% the aluminum grating is lighter, versus other types of materials;
Free area and measurements of the aluminum gratings;
Weight and volume of the grating products;
Outline LENGTH, WIDTH and HIGHT of the grating;
Technical support, technical assistance, after sales service information;
Type of packaging used for the grating products.

Aluminum grating is designed to be a high-strength, low-weight product that uses an I-bar or rectangular bearing bar with cross rods hydraulically swaged under high pressure. Aluminum Swage Locked Bar Grating offers a rigid, virtually maintenance-free flooring product for tread safety plates and strut safety plates.

Similar to steel grating, aluminum grating can be pressure locked as an alternative to swage locked. This application process also allows the customer to choose a close mesh grate where certain special needs are to be met.

  • Country: China (Mainland)
  • Business Type: 制造者
  • Market:Africa
  • Founded Year:2008
  • Address:No.168 New Development Zone, Dezhou, Shandong, China
  • Contact:Dong Zizhan
