Dshg-7x Handheld Xrf Soil Analyzer

I.Introduction

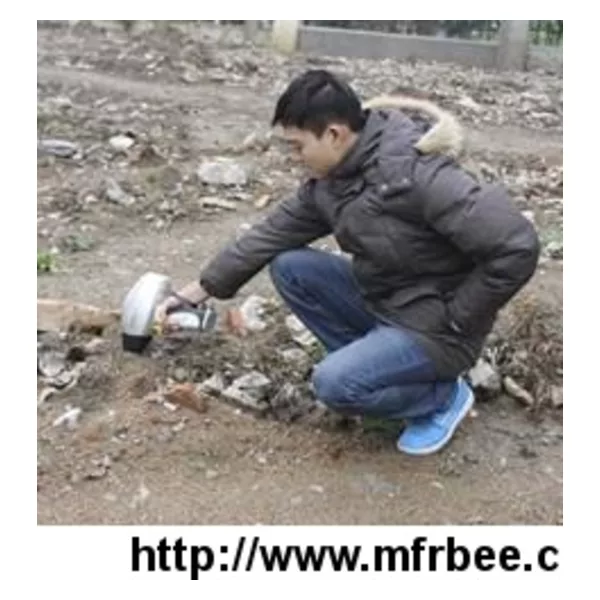

DSHG-7X Handheld Xrf Soil Analyzer can do site analysis for various conditions. The function includes site analysis for in situ soil to investigate local environment and apply in soil and water conservation project.The operator can analyze local soil directly or make analysis through sampling first. By site acquisition process and soil sample analysis, you can get the same effect as that in the laboratory. DSHG-7X Handheld Xrf Soil Analyzer also can be used to detect filter material, painting material, wood processed by chromated copper arsenate and other various test samples.

II. Specifications

1.Excitation Source: high performance mini X-ray tube,Ag target

2.Detector: High performance Si-Pin/SDD detector, Peltier cooling, resolution<160eV

3.Display: Fixed angle integrated colorful backlight LCD touch screen, size: 4.2", resolution: 800*480

4.Battery: Rechargeable lithium batteries with heat exchanging

5.Measurable Elements: All elements from Si~U (can change as per to application)

6.Standard analysis mode: Soil analysis mode

7.Circuit system: DSP embedded system

8.Data storage: USB interface, bluetooth, RS-232 data transmission

9.Safety protection: Password protection

10.Data input: Touch screen

11.Standard configuration: Water and shock proof suitcase with password lock, wist strap, 2 rechargeable lithium batteries, 110/220V AC charger/power adapter, USB data cable, software and security lacing.

12.Analyzable Elements

Model	Analytical Elements
DSHG 700	S, K, Ca, Sc, Ti, V, Cr, Mn, Fe, Co, Ni, Cu, Zn, As, Ba, Cs, Te, Sb, Sn, Cd, Ag, Pd, Zr, Mo, Sr, U, Rb, Th, Pb, Se, Au, Hg, W
DSHG 760	Al, Si, P, S, Cl, K, Ca, Sc, Ti, V, Cr, Mn, Fe, Co, Ni, Cu, Zn, As, Ba, Cs, Te, Sb,Sn, Cd, Ag, Pd, Zr, Mo, Sr, U, Rb, Th, Pb, Se, Au, Hg, W

III. Main Applications and Features

1.Fast survey and measurement of polluted metal composition,mode and boundary.

2.Field monitor metal referred in RCRA and priority controlled polluted metal.

3.Site minimized process hazardous substance in raw soil,infected water,waste water etc,and also provide theory basis for deep analysis of pollution control and redress method.

4.Some diseases caused by environment pollution are relative with heavy metal elements,such as cancer (Ni,Cr), nephropathy(As,Pb), hepatopathy(As,Cu), pneumoconiosis(Fe), asthma(Ni), Parkinsonism(Mn).
