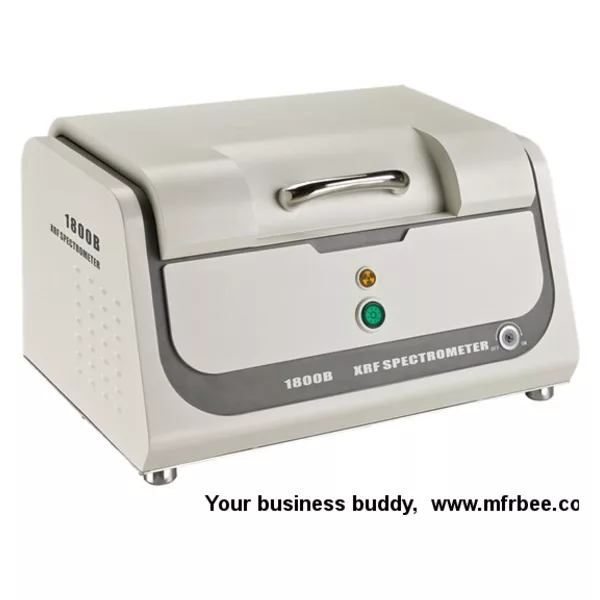

DSHX1800B RoHS Tester

I. Instrument introduction

DSHX1800B incorporating Dshing’s years of RoHS testing and developing from DSHX1800 is of powerful function. With its unique product configurations, fully functional software, ergonomically design and friendly software interface, it can meet the RoHS testing requirement and grants the users a simple measurement job.

II. Performance characteristics

1. Automatic collimators and filters switch

2. Professional RoHS detection

3. In-built SNE improves signal processing ability up to 25 times

4. Intelligent RoHS analysis software matches with the instrument well

5. Arbitrary optional analysis and identification models

6. Multi-variable non-linear regression procedures

III. Technical specifications

1. Measurable elements: S to U.

2. Detection limit reaches 1ppm.

3. Element content: 1ppm to 99.9%

4. Arbitrary optional analysis and identification models

5. Independent matrix effect correction models

6. Multi-variable non-linear regression procedure

7. Excellent repeatability: 0.1%

8. Long-time working stability: 0.1%

9. Ambient temperature: 15℃ to 30℃

10. Power supply: AC 220V±5V, AC purified stabilized voltage power supply.

IV. Standard configurations

1. Movable sample platform

2. Signal-to-Noise Enhancer (SNE)

3. Electric-cooling Si-PIN detector

4. Signal detection electronic circuit

5. High and low voltage power

6. X-ray tube of high power

V. Application fields

1. RoHS detection and analysis

2. Detection for concentration of golden, platinum, silver, other precious metals and various jewelries

3. Detection for plating thickness of metals, concentration of plating solution and plating

4. Full-element analysis for minerals and other resources

5. Mainly applied in RoHS directive industries, precious metals and jewelries processing
