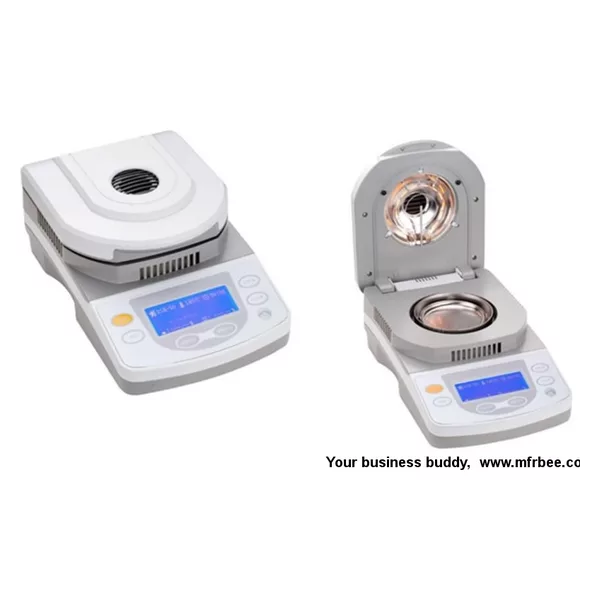

DSH-10A Moisture Analyzer

I. Feature:

1.The supper high resolution back window matrix liquid crystal display (LCD), marking it easier to operate in the dark place, and the user will have more comfortable vision.

2.Touch-tone chain plate makes the operation easier.

3.The high precision heat insulation type sensor makes temperature for data acquisition reliable.

4.The use of halide torch for heating and curing make worming more rapidly and testtime shorter.

5.In the process of test ,the dry state can be directly confirmed to speculate the finish time.

6.It is equipped with automatic peeling function ,it can measure immediately and continuously, and also measure accurately through the zero drift correction.

7.Installed with RS232 interface inside, the products can be directly connected to computer and printers etc.

8.The halogen drying method moisture analyzer can test the free water content of chemical raw materials ,grain, mineral, biological product, food, pharmaceutical raw materials, paper, textile raw materials and etc.

II. Technical parameters:

1. Weighing range(g): 10

2. Readability: 10mg

3. Repeatability(3g samples): 0.5%

4. Minimum sample amount: 0.5

5. Advised sample amount: 3-10g

6. Heat up time: 1-99minutes, 1 minutes interval

7. Temperature program: Standard

8. Terminal control: Timing, Automatic

9. Heating temperature range: 50-180 degrees

10. Showing content: Moisture%, Solid%, Weight, Time, Data, etc.

11. Pan size: 100mm

12. Overall dimension: 265*160*150

13. Net weight: 5kg

14. Total weight: 6kg

15. Heating source: Halide torch
