Medium Duty Shelving and Racking System, widely used in many applications, main parts include: Upright Frame, Beam, and Panel. Load capacity of the medium duty warehouse shelving is 200-800kg/level. There are different types of frame ofmedium duty racking systems, the beam of themedium racking systemcan be chosen as the different load requirement, also powder coated steel sheet panel, galvanized panel, particle board, wire decking, both are available.

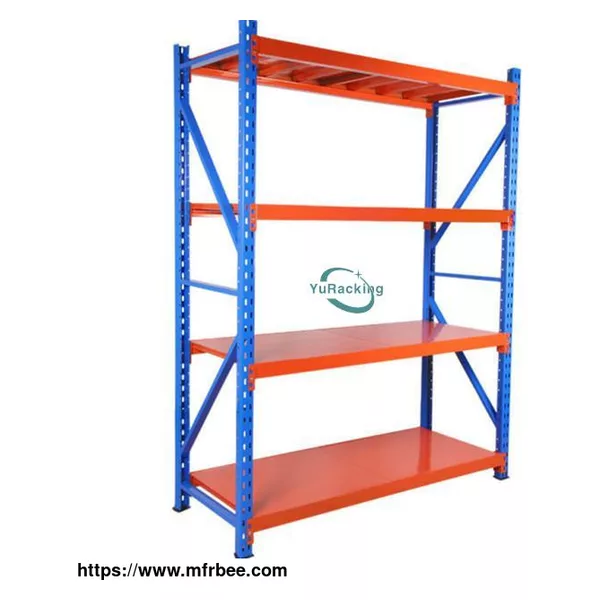

Medium duty shelving
The Features of Medium Duty Shelving System
·
Hand stacked design, medium duty loading;
··
Easy to assemble and disassemble;
··
Can be used for the multilevel mezzanine racking system;
·
The strengthen ribs design under the panel, make extra strength;
·
Easy to handle, widely used in many industries.
The Specification of Medium Duty Shelving System
Material | Steel Q235 |
Size | Length: 1500-2500mm |
Depth: 500-1500mm | |
Height: 1500-4000mm | |
Thickness | 1.5mm-2.0mm |
Load Capacity | 200-800kg/layer, other loading also can be customized |
Surface | Powder Coated or Galvanized |
Feature | Anti-rust, Corrosion-protection |
Aisle Size | 1m-1.5m |
Load Mode | Manual Work, for some high warehouse, may fix with climbing cart |
|
