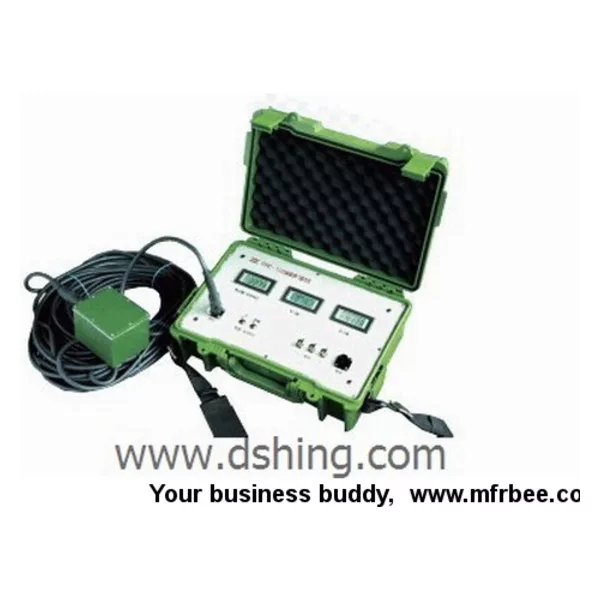

DSHD-1 Portable Tri-component Fluxgate Magnetometer

Introduction

DSHD-1 Portable Tri-component Fluxgate Magnetometer can detect mutually vertical X, Y, Z components of any point magnetic induction. It can be applied to the monitoring of geomagnetic field, study of various moving objects (like cars etc) magnetism and detecting of magnetic objects or ores.

Main advantages
The size of tri-component probe is small, and can be used in special places like underground etc.
The longest probe cable can reach 30m.
Display tri-component simultaneously, easy to observe.
High resolution simulation output, easy to connect data acquiring device. High energy lithium batteries piles to supply power, can work in field long time.

Main Technical Parameters
Measuring range: 0~± 100,000nT
Maximum resolution: 1nT (simulation output terminal)
Display resolution: 10nT/byte
Full range output: ± 10V ± 0.5%
Frequency respond: 0-20Hz@ ± 10,000nTp-p

Remanence: ≤± 1nT@ ± 100,000nT
Tri-axes orthogonal degree: ≤± 1°
Cable length: 5~30m optional
Continue working time: no less than 8 hours
Size: Probe: 104*83*75mm
Mainframe: 372*266*135mm
