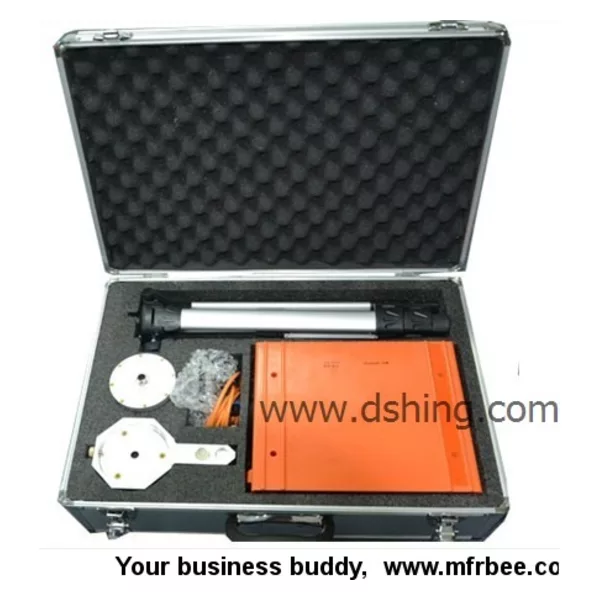

DSHC-6 High Precision Magnetometer

Introduction:

DSHC-6 high-precision magnetometer is the new generation fluxgate magnetometer. having latest American technology, and having high resolution and accuracy, and can calibrate the surrounding interfered magnetic field. It is more advantageous in transportation and usage comparing with silicon oil liquid probe. The display is a powerful mainframe, which is with a LCD screen, can be operated directly and then be marked the measurement.

Function:

1. Faults location, archeology, hydrology, engineering exploration (pipe detect), seismic omen survey, volcano observation and magnetic prospecting &geological mapping of other environment and disaster geological work.

2. Magnetic exploration of various magnetic ores (magnetite), combined with other prospecting method, it can research ore’s buried depth, vein direction, continuity, and shape, size, ore deposit scale as well.

3. Magnetic prospecting and geological mapping of metal and non-metal ore deposits.

Main Advantages:

1. Profile curves of magnetic field strength in the measurement region can be given directly from the data, and then the prospectors can get idea about the magnetic field changing trend, also determine whether there is any bedrock existence and value of exploration. Small size, light weight and portable.

2. Dynamic show of the difference can see the variation value of magnetic field intensity directly.Simple and easy to learn, you can master it within 5 minutes even without professional knowledge.

3. It is all-solid-state due to the usage of all-solid-state electronic circuits and integrated sensor chip. No need silicone oil in probe for damping. DSHC-6 magnetic detector can measure when inclined, converted and transverse, transport well.

4. High-resolution: 0.1nT~1nT. Good stability in repeat measurement.

5. Built in temperature compensation: automatic calibration to error caused by temperature changes.

6. Communicate with computer: the data can be transmitted to a PC as the basis for mapping and analysis.

7. Wide range up to ± 100000nT (is the widest range at present). No need to set grade and shifting, which is more convenient.

8. Automatic record and save data: it records the time and magnetic field intensity when measurement.

9. Display is big screen LCD with backlight, which can be also used at night.

10. Automatic voltage alarm: the power of probe and display is large-capacity rechargeable lithium batteries: with 4000mA capacity.

11. Big data storage capacity: it can store data of 100000 points, and you can view the former data at any time.

Main Technical Parameters

Detect axial: geomagnetic field vertical or horizontal component.

Measuring range:-100000nT~+100000 nT

Resolution: 0.1nT~1nT

Accuracy: <± 0.5% (full range)

Measurement method: full range direct measurement without coarse adjustment, accurate adjustment and shifting.

Data storage capacity: 100,000 points

Data acquisition frequency: 100 times per second;

Whole power consumption: 160mA~300mA,

Power supply: 4000mA big-capacity rechargeable lithium batteries, one charge to probe can work 20 hours continuously.

Working temperature: -10 ℃~+50 ℃, built-in temperature compensation.

Display mode: large-screen LCD show the difference value with backlight, brightness is adjustable;

Probe size: Ф88mm*60mm

Power data line: 1.5m

Probe weight: 0.5 Kg

Mainframe weight: 2Kg

Mainframe size: 270mm×110mm×223mm
