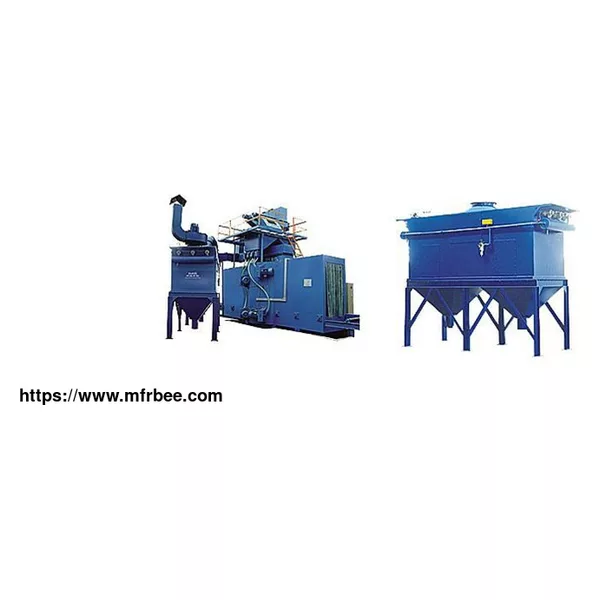

H Beam Shot Blasting Machine

H beam shot blasting machine is designed and manufactured to clean the surface of the section steel. It is ideally suited for removing the rust, scale and contamination from the steel surface, which can make the surface clean, bright but with a certain coarseness. So the paint film can attach to the steel surface more firmly, thus improving surface quality and the anti-corrosion capacity. Our steel structure shot blasting machine mainly consists of shot blasting chamber, workpiece transport system, shots circulation system, dust removing system, electrical control system, etc.

The length of this machine is about 31m; the height is less than 6.4m. The abrasive diameter is from 1.2 ~ 1.5mm, and the conveying speed is about 0.4～4.5m/min (Frequency conversion speed regulation). For the covering area, it takes about 15000×1000×1800mm.

As a famous H-beam shot blasting machine manufacturer in China, we can design and manufacture different specifications according to different requirements of the client.
