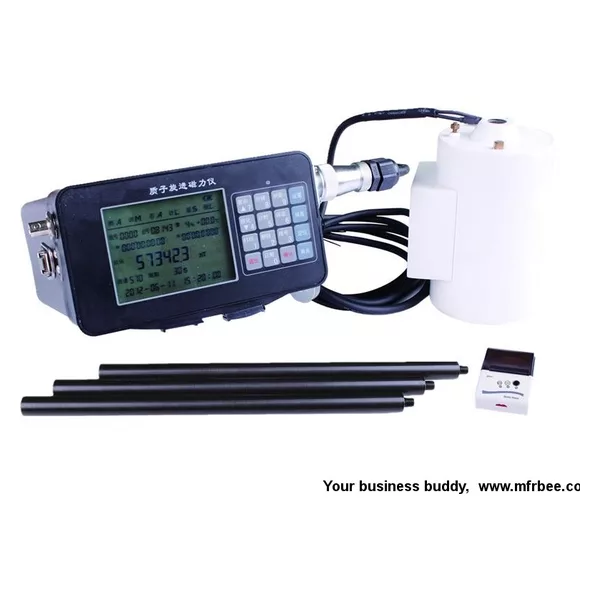

DSHP24959 Proton Precession Magnetometer

Features:

Smart, portable, easy to operate;

GPS positioning, improve the efficiency of field work;

Wide digital LCD (with backlight), which will help outdoor strong (dark) light reading data;

Waterproof console design is conducive to adapt to harsh outdoor weather conditions;

Large-capacity data storage, standard USB interface;

Micro Bluetooth printing measurement data

Technical Specifications:

Resolution: 0.1nT;

Absolute accuracy: 0.5nT;

Measuring range: 20000~100000nT;

Gradient tolerance: < 7000nT/m;

Sampling Rate: (3 ~ 99999) seconds;

LCD Display: Magnetic field values​​, date and time, line number, dot, GPS latitude and longitude;

Clock Accuracy: ± 5ppm (0 ~ 10) year

GPS accuracy: 5m;

Operating Mode:

(1)Manual / automatic measurement;

(2)Manual / automatic tuning;

(3)Manual / automatic storage;

(4)GPS on / off;

(5)Gradient (optional);

Output:

(1)Bluetooth wireless mini-site printout;

(2)Memory data transfer via a standard USB interface to the PC.

Storage Capacity: 12000 measuring point data;

Standard Software: Professional geological software format data, used to draw contour maps, profiles; diurnal variation can be automatically corrected

Power supply: 12V/7A rechargeable lithium battery, continuously measure the wild Points: 12,000, the base station can be an external 12V input measurements.

Working environment:

(1)Temperature (-20 ~ +50) ℃;

(2)Humidity: ≤ 90%;

Dimensions and weight:

(1)Console: (175 × 110 × 245) mm; 2.2 kg

(2)Probe: (Φ90 × 155) mm; 1.6 kg

(3)Gradient probe: (Φ90 × 173) mm; 1.6 kg (optional)

(4)Probe: 5 (Φ24 × 500) mm; 1.4k
