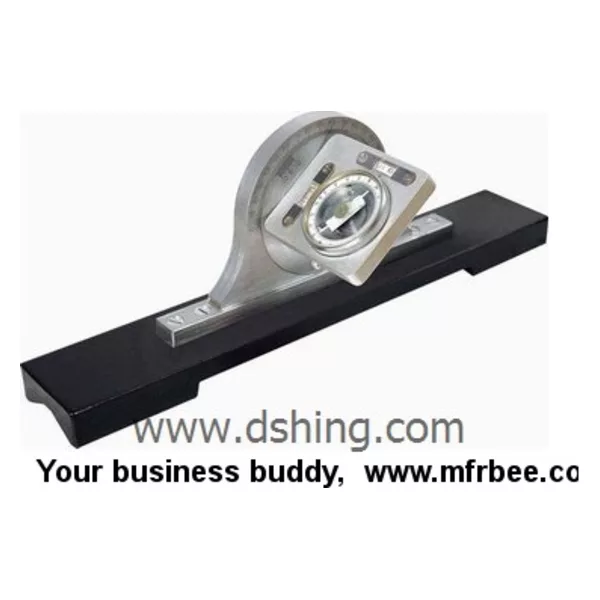

DSHK-1 Dip Angle and Azimuth Angle Calibration Tester

Product Quick Detail

Packaging
N/A
Delivery
15 Days

Function:

The instrument can be used to check DSHP-1 Portable Inclinometer, DSHX-3 Inclinometer, DSHP-3A Portable Digital Inclinometer, and DSHX-3A Digital Inclinometer at site.

The instrument can also be used to determine inclination of other projects on the ground. It can be used as a water level, too.

The instrument is portable and the tools to determine inclination at site.

Technical Parameters:

1. Measurement range:

(1) Dip angle: 0°~90°;

(2) Azimuth angle: 0°~360°;

2. Measurement error:

(1) Dip angle: ±0.2° (the smallest reading is 0.1°);

(2) Azimuth angle: ±2° (the smallest reading is 0.1°);

3. Instrument size: 280×100×120 mm;

4. Weight: 1 kg;
