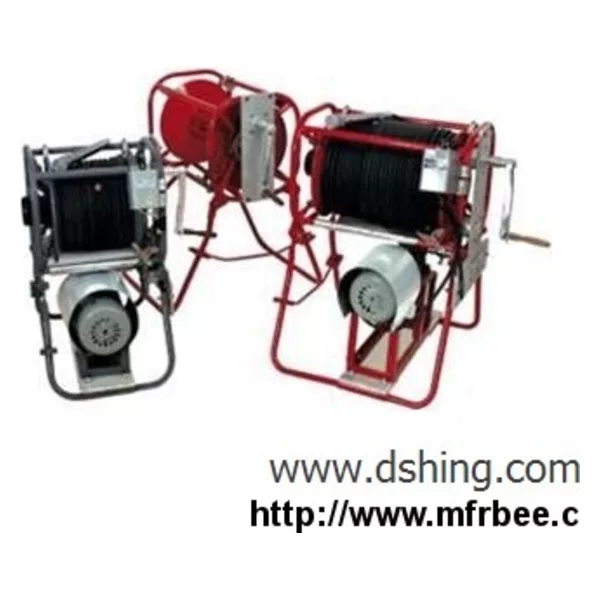

DSHJ1031 Portable Electric Winch

Induction:

This winch is special used for filed work .Combined with φ3.12mm single armour cable and single transmission digital probe can service as a portable digital logging system. It is an ideal logging instruction for mountain area and poor communications.area

Features:

*Light weight,easy transportation

*winch drum was made with no magnetism,stainless steel high strength aluminum alloy. wiht light weight feature,small interference

*with the function of wide speed range,invariable moment,compound malfunction protection

*Manual operation also available.

Main technical Details:

Cable capacity(logging depth):≮1000m

Lifting speed:0~1800m/h

Cable diameter:φ3.12

Cable weight:43kg/1000m

Cable conductor withstand voltage:700V

Cable operating temperature:-20~+100℃

Winch dimension:620*420*550mm

Winch weight:40kg

Offer power protection:Mechanical self-locking

Cable spooling:automatic

Power supply:DC 220V±10%,current 5A,frequency 50HZ±10%
