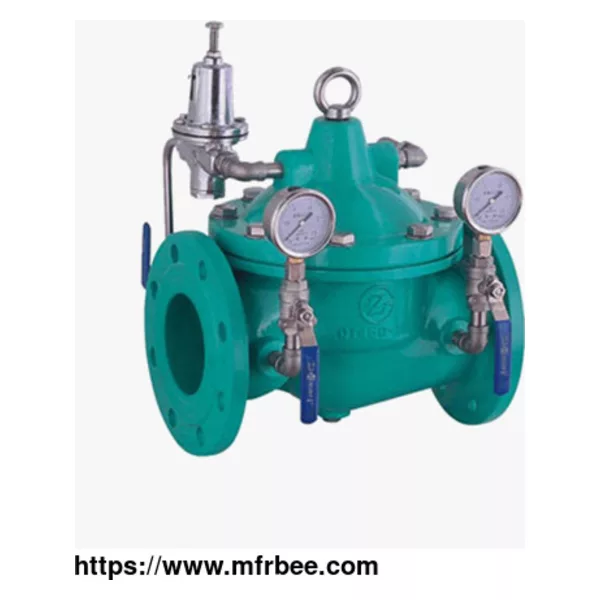

Festures of pressure reducing valves for fire protection service
Sensitive and accurate pressure control
Adjustable static pressure and dynamic pressure
Outlet pressure does not fluctuate with inlet pressure
Full port, small fluid resistance
Fire Pressure Reducing Valve Working Principle
When water flows through the check valve, water flows into the main valve control chamber through the needle valve, and the outlet pressure is imposed on the pilot valve through the guide duct.
When outlet pressure is higher than the set pressure of the pilot valve, the outlet pressure does not rise any more; when the outlet pressure of the valve reduces to the set pressure of the pilot
valve, the pilot valve opens, water is discharged out of the control chamber. Because the water discharged from the pilot valve system is more than the water inflow, the pressure in main valve
control chamber reduces. The inlet pressure forces the main valve open. In a stable state, the water inflow and discharged water of the control chamber are equal. The opening of the main valve
keeps constant, with stable outlet pressure.
Pressure Reducing Valve Installation and Commissioning
For operation, adjustment and maintenance convenience, the pressure reducing valve is typically installed on a horizontal pipe along with a backup pressure reducing valve group. Every grade of
spring of the pressure reducing valve ;can only apply in a certain range of outlet pressure, and outlet pressure can be set only by adjusting the spring of pilot valve. For specific use, please
consult ZECO Valve Group.
Pressure Reducing Valve Material and Standard
Size Range: 2"~24"
Pressure Rating: 10bar ~ 25bar
Face to Face Dimensions: AMSE B16.10, EN558-1
Flange End Dimension: AMSE B16.1/16.42, AS4087, EN1092-2
Coating: Fusion Bonded Epoxy Coating
Inspection and Test: ISO 5208 / EN 12226-2
As a pilot operated pressure reducing valve manufacturer, we have types of pressure reducing valve for sale, and the cost of prv valve is affordable, if you want to buy water pressure reducing
valve, please contact us.
