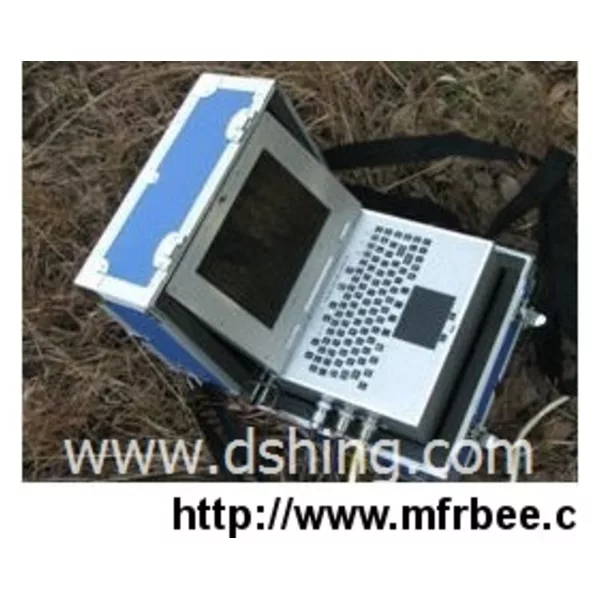

ATEM-6 Transient Electromagnetic Prospector

Main Introduction:

Transient Electromagnetic Method (TEM) is a time-domain electromagnetic method , using ore and underground water’s conductivity and magnetoconductivity difference as main substance base.

Applies non-earthing loop or earthing line source to send first pulse magnetic field to ground according to electromagnetic induction theory; Then in the gap uses coil or earthing electrode to observe second eddy field, and also study the space and time spread laws to search underground water and solve other geological problems.

Application:

1. Search geothermal resources, oil-gas field census and exploration in high-resistance covering area (like carbonate rock, igneous rock and frozen soil covering area), etc. The maximum prospecting depth can exceed 1000m.

2. Detect various metal and non-metal ores, underground water (including carst water), geological disaster survey and steep dip geological formation;

3. Especially applied in coal bed and coal goaf area and water-filling area detection;

Main Advantages:

1. First apply 200A large currency square wave to supply power continuously. It uses portable power supply to realize big currency.

2. The power supply working method is “Big currency small coil” (25 times, 25m transmitting coil), the prospecting depth can reach 1000m, which is specially fit for field terrible working condition and can improve working efficiency obviously.

3. Industrial PC as main controller and Windows as control panel.

4. The supply currency, power pulse width, sampling rate and stacking folds etc. all set by English menu; computer large capacity storage space guarantees large-capacity density sampling.

5. Good security. The receiving circuit applies high performance CMOS chip assemble promoted latest to make total unit perfect function.
6. High sampling rate.
7. Multiple anti-jamming technologies.
8. Advanced interpretation software system.

Main Parameters:
Receiver
1.Sampling rate: 1μS 4μS 16μS 2.A/D converter: 16Bit 1M/S
3. Dynamic range: 140dB
4. Background noise: <1μV
5. CPU: Pentium IV 500M , low power consumption
6. Memory: 128M
7. Hard-disk: 40G
8. Interface: USB, parallel port, serial port, network card
9. Display: Colorful high brightness TFT 800× 600 lattice
10. Main amplifier: 1 time, 10 times, 100 times, 1000 times
11. Stacking fold: 1-9999
12. Channel: 2
13. Measure channel: any programming
14. Pass band: 0-400kHz

Transmitter
1. Transmitting currency strength (A): 1-60 adjustable
2. Currency frequency (ms): 225, 75, 25, 12.5, 6.25
3. Max. transmit power (KW): 12
4. Output voltage (V): 12-96
5. Power-off time (us): 1-300
6. Delay time range: 1us-160ms
7. Input voltage (V): 12-96 battery
8. Transmitting wave form: bipolar rectangle wave
9. Transmitting coil: 5*5 single turn-300*300 single turn
