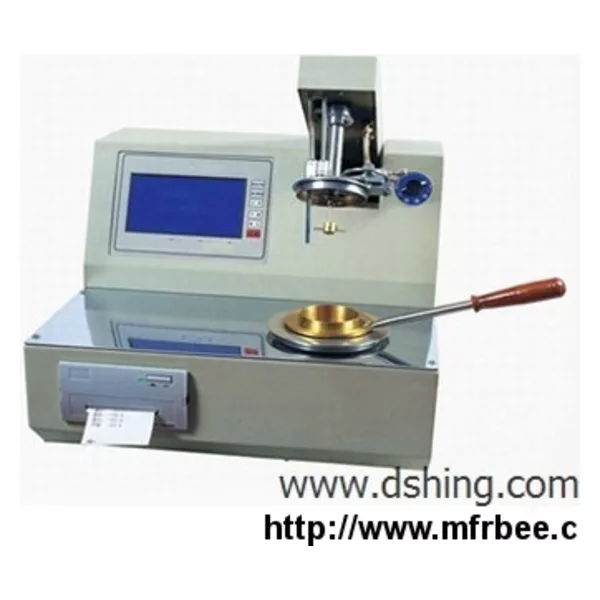

DSHD-261A Automatic Pensky-Martens Closed Cup Flash Point Tester

A:Brief description:

DSHD-261A Automatic Pensky-Martens Closed Cup Flash Point Tester is designed according industrial standard SH/T0315 Technical Specifications of Closed Cup Flash Point Tester.

The main function of DSHD-261A Automatic Pensky-Martens Closed Cup Flash Point Tester is to make determination of closed cup flash point of the petroleum products according to national standard GB/T 261 or ASTM D93.

B:Main advantages:

1. Simulation tracking displays function curves of heating up and test time.

2. Equipped with the English prompt function of mis-operation.

3. Equipped with prompt function of test date,test time and other parameters.

4. Automatically calibrate the effect of atmospheric pressure to test and calculate the corrected value.

5. Differential coefficient detection.Automatically correct the system deviation.

6. Automatically open the lid,detect the flash point and print test data.

7. The test arm rises up and lowers down automatically.

8. Igniting with electric igniting gun,forced air cooling.

C: Main technical specifications and parameters

1. Power supply: AC(220±10%)V, 50Hz.

2. Temperature measuring: Measuring range: Room temperature~ 250℃.

Range of flash point: 41℃~ 250℃.

Flash point≤104℃: Error 2℃.

Flash point>104℃: Error 6℃.

Resolution: 0.1℃.

Accuracy: 0.5%.

3. Basic parameters:Heating rate: Correspond with GB/T261

　　　　　　　 　 Igniting mode: Electric ignition(Gas flame 3mm~ 4mm)

　4. Ambient temperature: ≤ 40℃

5. Relative humidity: ≤ 80%

6. Power consumption of overall unit: ≤ 350W
