Cut To Length Line

Place Of Origin
Zhejiang, China
Minimum Order
1
Packaging
wooden packing or naked
Delivery
2 months

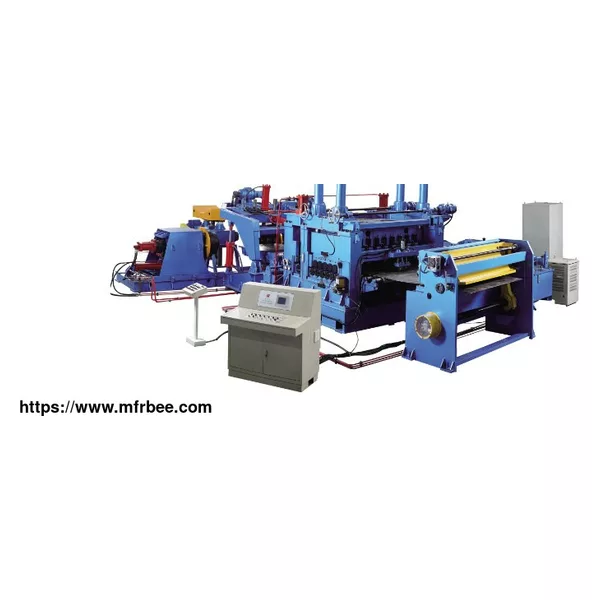

This china cut to length machine is special equipment for uncoiling, leveling, cutting and stacking the steel sheet according to the requirement of the client. It mainly consists of uncoiler, leveling system, feeding system, cutting system, conveying system, stacking system and so on.
This product is widely used in steel structure raw material separation to provide raw material preparation for better production of final products, for slitting 0.3-16mm steel panel or cut to length 0.5-30mm steel panel.
As a China cut to length line suppliers, we can design and manufacture different specifications according to the different requirements of the client.

Parameters Of China Cut To Length Line

Item Parameters
Model JH-3×1600 JH-6×1600 JH-10×1600 JH-12×2000 JH-16×2200 JH-20×2200 JH-30×2200
Thickness(mm) 0.5-3.0 1.5-6.0 2.5-10 3.0-12 4.0-16.0 5.0-20 7.5-30
Coil weight 35 30 35 35 35 40 40
Width(mm) 800-1600 800-1600 800-1600 1000-2000 1000-2200 1000-2200 1000-2200
Number of leveling rollers ≥15 ≥13 ≥11 ≥11 ≥9 ≥9 ≥9
Line speed(meter/minute) 0-60 0-40 0-30 0-30 0-20 0-20 0-20
Power(KW) 90 155 240 255 255 305 460
Mechanical area(m) 8×30 8×35 8×30 10×32 10×53 10×55 10×56
Material Specification Of China Cut To Length Line
Item Parameters

Cut coil material specification Cut material Common carbon steel, stainless steel, color coated plate, and galvanized plain steel
Coil width(mm) 200-650 600-1350 600-1600
Coil thickness 0.2-2.0 mm 0.2-2.0 mm 0.3-3.0 mm
Coil weight(T) 6 15 15
Line speed(m/min) 15-50 m/min 15-50 m/min 15-60 m/min
Cutting length(mm) 300-1500 600-2500 1000-4000
Power (kw) 75 95 110
Mechanical area(M) 4×16 7×20 9×26

Jinggong provides cut to length machine for sale, used cut to length line for sale, cut to length line for sale. Want to know the types of auxiliary equipment or buy china roll forming machine, contact us now.
