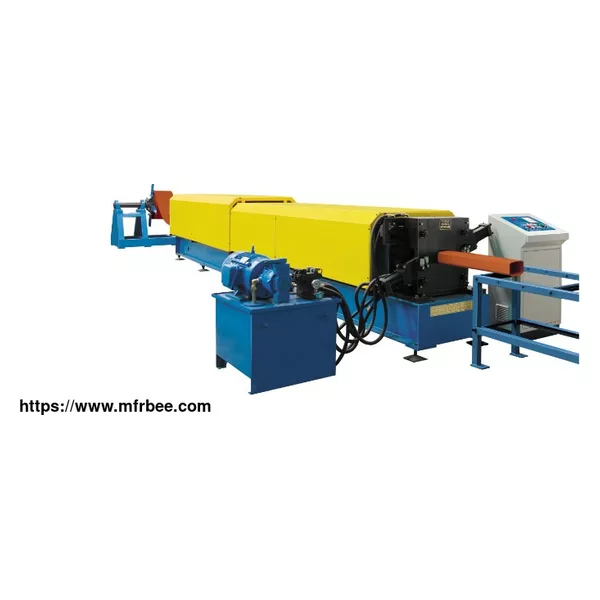

Thisdownspout pipe roll forming machine
The most standard size is 134*93mm and 153*106mm, and the suitable coil thickness and strength range is 0.5-0.6mm, 235-345Mpa for reference. After down pipe forming, we also have the curving pipe forming machine.
We can design and manufacture downspout machines for forming different profiles according to customers' requirements. We also have various types of roll forming machines for sale.
Round Downspout machine onjinggong
Parameter Of Downspout Roll Forming Machine
Item | Parameter | |
Model | HS-134 | HS-118 |
Downpipe section specification | 134×93 | 118×89 |
Material | Type | Color steel sheet |
Thickness | 0.45-0.55 | |
Yield strength | 230-300 | |
Forming speed | 10 | |
Roller material | 45# Steel with chrome-plated | |
Roller driven type | Chain transmission | |
Controller | PLC | |
Operation | Touch screen+button | |
Hydraulic system pressure | 12 | |
Hydraulic station motor power | 7.5 | |
Main motor power | 3 | |
Total power | 10.5 | |
Total weight | 8000 |
Technics flow Of Downspout Roll Forming Machine
Decoiling →guiding and feeding→roll forming →cut to length →run out table
Want to know thetypes of auxiliary equipment or buysandwich panel production line, contact us now.
