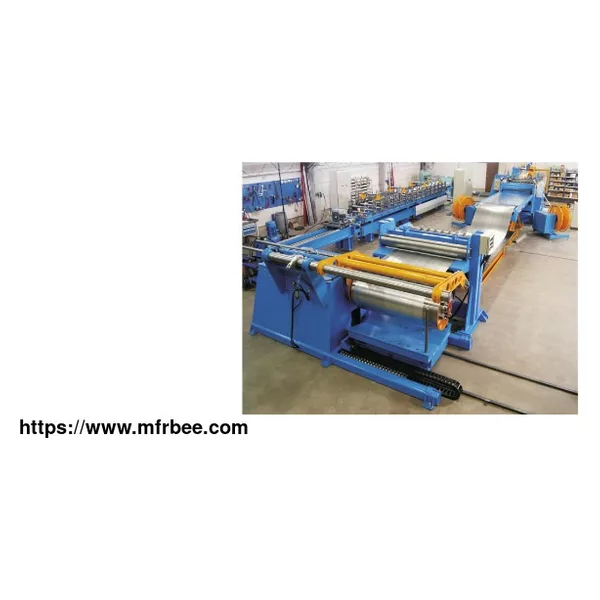

Slitting Line

This sheet metal slitting line machine is special equipment for uncoiling, slitting and recoiling the steel sheet according to the requirement of the client.

Our machine adopts international famous brands for core components, such as SIMENS, DANFOSS, OMRON, REXROTH, SEW, etc. And we can design as your requests for special material, such as stainless steel, GI, copper foil, etc. We can design and manufacture different specifications of coil slitting line according to different requirements of the client.

Parameters Of Slitting Line

Item Parameters

Model JZ-3×1600 JZ-6×1600 JZ-8×1600 JZ-12×2200 JZ-16×2200

Thickness(mm) 0.3-3.0 1.0-6.0 2.0-8.0 2.0-12.0 3.0-16

Coil weight(T) 35 35 35 35 40

Width(mm) 800-1600 800-1600 800-1600 800-2200 1000-2200

Finished product min.Width(mm) 35 65 75 75 75

Line speed(m/min) 0-120 0-60 0-40 0-30 0-20

Power(KW) 200 220 160 130 150

Mechanical area(m) 8×22 10×28 10×30 10×35 13×30

With 53 years' experience, Jinggong is specialized in manufacturing high-quality slitting line machine and continuous sandwich panel line,, feel free to contact!
