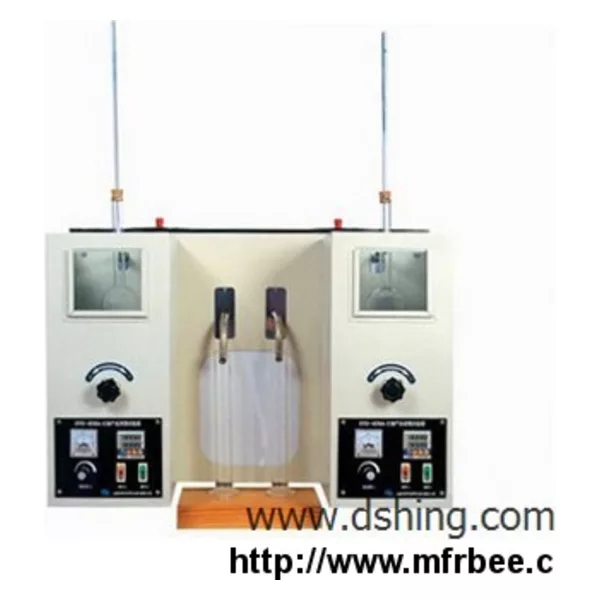

DSHD-6536A Distillation Tester

A:Brief description:

DSHD-6536A Distillation Tester is designed according standards GB/T6536 Test Method for Distillation Characteristics of Petroleum Products and ASTM D86.

DSHD-6536A Distillation Tester is widely used in determine the distillation characteristics of gasoline, aviation gasoline, jet fuels, solvent having special boiling point and so on

DSHD-6536A Distillation Tester is not only suitable to the organizations of high frequency with various of samples but also accelerate the test speed for common users. It is an ideal distillation tester for petroleum products.

B: Main technical features:
1.The instrument adopts double units working mode, can do test for one sample as well as two samples which having the same specification or different specifications.It highly improves the work efficiency.
2.It adopts two groups of independent digital temperature controller, heater, electric stirrer to constitute two constant temperature baths. Each bath temperature can be adjusted and controlled independently.The temperature in the bath is uniform,can fully meet the requirements of test.
3.It adopts special heating furnace to ensure the safety of test. Heating power can be stepless adjusted to meet the requirements of test.

C: Main technical specifications and parameters
1.Power supply: AC(220±10%)V, 50Hz
2.Heating power of electric furnace: 1000W×2, stepless adjustable.
3.Capacity of measuring cylinder: 100ml, division value is 1ml.
4.Distillation flask: 125ml,meet the requirements of GB/T 6536
5.Thermometer:Stick type, complete immersion, scale range for each:(-2~300)℃、(-2~400)℃
6.Active plate of electric furnace: silicon carbide, bore diameter is: φ32mm, φ38mm, φ50mm.
7.Temperature controller:1) Control range: (room temperature+10)℃～60℃
　　　 2) Accuracy: ±0.5℃
　　　 3) Temperature display: LED
Notification: The temperature control is to control the temperature of condensate in the condenser pipe.
8. Ambient temperature: ≤35℃
9.Relative humidity: ≤85%
10.Overall power consumption: ≤2200W
11.Overall dimension:760mm×520mm×500mm
