Bronze Flow Balancing Valve

Place Of Origin: China

Minimum Order: 1

Packaging: Wooden Crate

Delivery: Within 30 days

Festures of Bronze Balancing Valve

Good sealing, no penetration, easy to adjust the rotation;

Small mounting space, accurate and clear opening indication;

The use of inclined valve core and stem is more fluid flow in the valve

The surface is smooth and clean, and the appearance is delicate and beautiful.

Bronze Flow Balancing Valve Working Principle

The valve regulates the flow rate of medium through its valve body, balancing the valve stem up and down by turning the regulating valve handle, adjusting the flow path and changing the flow curve characteristics. Pressure gauges equipped on the balance valve body are used to measure pressure differential, which can be used to detect and adjust the flow rate.

Bronze Flow Balancing Valve Installation and Commissioning

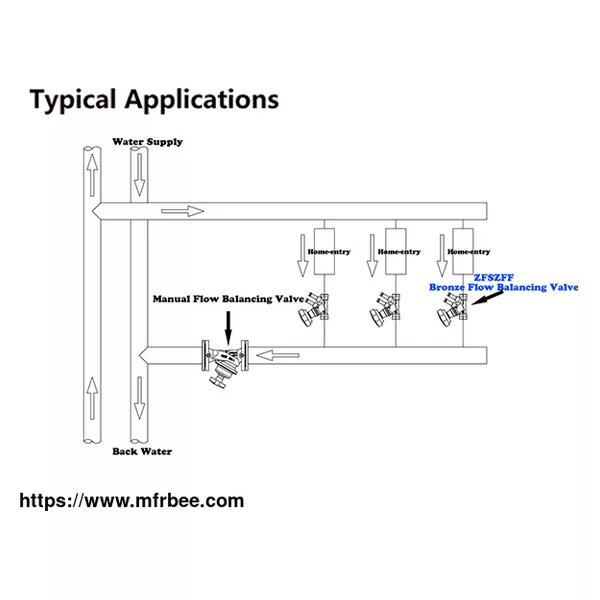

This valve can be installed either on the water supply pipe or on the water return pipe. Generally, it is recommended to be installed on the water return pipe, especially on the high-temperature loop. For specific use, please consult ZECO Valve Group.

Bronze Flow Balancing Valve Material and Standard

Size Range: 3/4"~2"

Pressure Rating: 10bar ~ 16bar

Face to Face Dimensions: EN 558-1, ASME B 16.10

Flange End Dimension: BS 21

Inspection and Test: ISO 5208 / EN 12226-2

Part Material Standard

Body CuZn39Pb1 / C37000 EN12167/ASTM B135

Bonnet CuZn39Pb1 / C37000 EN12167/ASTM B135

Trim CuZn39Pb1 / C37000 EN12167/ASTM B135

Measuring Port CuZn39Pb1 / C37000 EN12167/ASTM B135

O-Ring EPDM / NBR ISO 4633

Handwheel Nylon ISO 4633

For materials options not listed, consult factory.

Zeco manufactures valves in more than 50 different alloys.

There are many hydronic balancing valve manufacturers, but we are one of the best choices for you.

ZECO Valve Group is an experienced water valve supplier. We provide building water shut off valve, gate valve, etc. Contact us to know more.
