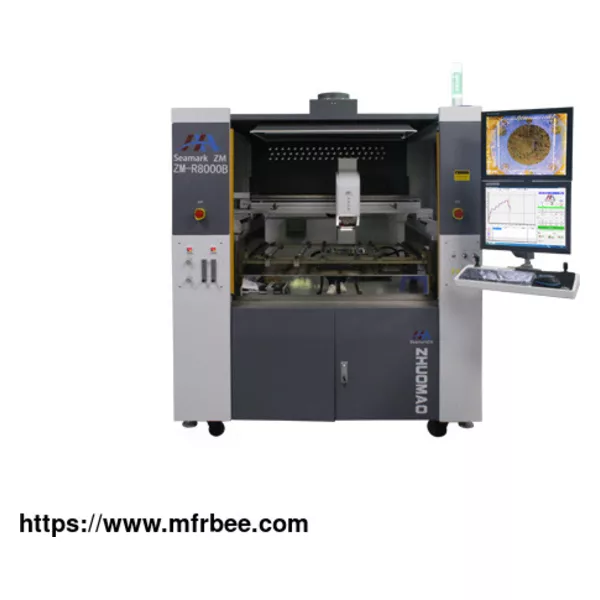

ZM-R8000B Large Precision Rework Station

Place Of Origin: china

Minimum Order: 1

Packaging: N/A

Delivery: 15 Days

R8000B Surface Mount/smd rework station board is a large-scale precision rework station. This BGA rework system has a self-tuning temperature curve, large-area preheating platform, automatic feeding and adsorption, high-performance, multi-loop heating system. As one of the most reliable BGA Rework Station manufacturers, Seamark ZM provides the best products with good quality.

Functions of R8000B Large Precision Surface Mount Rework Station

00 Large Area Preheating Platform

Independent three-temperature zone, the upper-temperature zone uses ceramic heaters, the preheating zone adopts German imported medium-wave ceramic infrared heating plates like infrared rework station, each plate can be controlled independently, and the preheating area can be adjusted according to the PCB board size. The large heating area of 850*580mm is suitable for the repair of larger PCB boards. The preheating zone automatically adjusts the distance from the PCB board to achieve the best performance.

01 Self-Tuning Temperature Curve

Industrial PC and servo motion control system for precise control, with multiple operating modes, real-time display and editing of temperature curves, each curve can be set to more than 12 segments, curve analysis can be performed automatically, and temperature curves can be automatically generated into massive log files and saved, which are convenient to recall the historical parameters and trace the abnormal quality. With over-temperature protection and alarm function, the software can be encrypted and foolproof.

02 Automatic Feeding and Adsorption

The heating head has a built-in vacuum tube for chip adsorption, electrically controlled 360 degree rotation alignment, with negative pressure monitoring, and automatic feeder device to realize automatic feeding and automatic receiving. With memory function, it can complete the desoldering and adsorption of the chip with one key, and the operation is simple.

03 HD Optical Inspection Module

Imported HD CCS (2m pixels) optical alignment system, which automatically moves the optical lens alignment through PC control servo system. 17dual screens are used to display the alignment effect and operation interface respectively. The alignment function does not interfere with the operating system and the operation is convenient.

04 High-performance, Multi-loop Heating System

External uses 5-channel temperature measurement interface, internal adopts high-precision K-type thermocouple with accuracy up to ± 1 ℃, it has dynamic PID multi-loop closed control selective reflow soldering process. At the same time, it can be connected with nitrogen heating to protect PCBA from oxidation and yellowing. Flowmeter negative pressure is precisely adjusted.

As one of the top BGA Rework Station suppliers in China, Seamark ZM is famous for its rich technical force, complete detection means, reliable product quality, full service. If you want to know some different types of automatic BGA rework stations and to get a perfect kind of repair machine for your factory, please contact Seamark ZM first.

We also have types of pcb x ray inspection machine for sale, if you have needs, please contact us.
