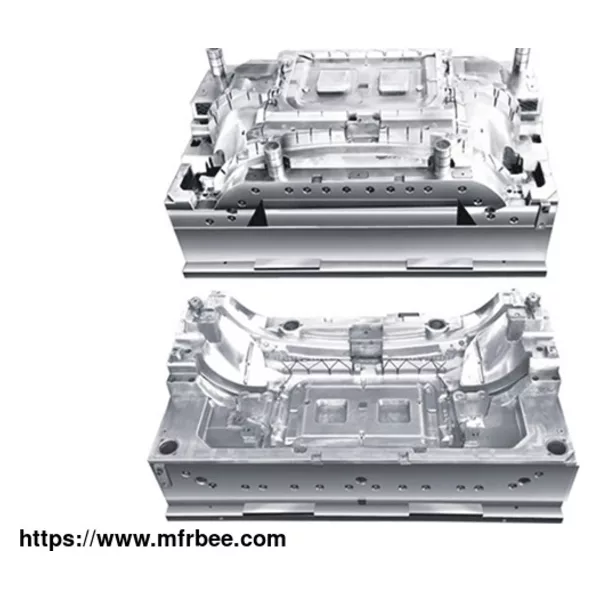

Prototype Injection Mould
Product Quick Detail
- Minimum Order
- 1
- Packaging
- N/A
- Delivery
- N/A
Specifications
Prototype molds are rapid processing for the molds. It's totally different from production molds as they can't be used in the long term. As a professional mold maker for over 15 years,Packson can
handle all kinds of mold including prototypes. We bring not only high skilled engineering team into the good design but also allow us to provide competitive prices and high-quality molds. Most of
our prototypes mold customers are from Honda. Every design needs proofing before they are produced by mass molding production especially for the automotive parts.
We will also make personal solutions for prototype mould just the same as production tooling. We share engineering information between our teams and our customers. Keeping close contact with our
customers is one of the important factors that Packson has good performance in making tooling and molding. Therefore, we ensure that our communications between the engineering team and customers
are always open and transparent.
Prototype Injection Mould
Prototype Mold Details And Options
We believe that it's important to test your market by first testing your product. Packson offers you an affordable method of testing with prototype parts. Our prototype processing helps you test
your part design and make a small batch of parts for assembly testing. You may not very clear about the definition of prototype molds and the differences between prototype molds and injection
molds. Here we can explain it for you:
Process For Prototype Mold
There are many things that need to be considered such as the product design needs to be perfect and it has to achieve actual full functionality before they get into the market. If there is any
failure for your products which means the part design is not fulfilled yet and we need to keep improving the design and finding a better solution. Therefore, prototype mold is the best way for us
to prove some issues before you are able to take your products into the market. Here is the process for prototype mold, you will find out what prototype mold exactly is:
There are 4 simple steps for prototype mold:
Start with a plastic part design
Initial concept or design is always the essential and critical part of manufacturing.No matter what kind of product you create like an electronic device or medical device, making the design and
design should be the first step.
You should make sure of the feasibility and functionality when it comes to plastic product design. Moreover, you have to consider the concept is doable or not. If the design fails then it would
waste time. But never mind, we have a professional engineer team who will make assessments for your design and provide our suggestions to help make the design better.
Providing DFM(Design for Manufacturing) and processing solution
We will make DFM according to your part design and offer a processing solution at a competitive price. Normally we will choose a removable insert which takes by hand during production, this will
help cut some costs. But this is only used for small batch production within 500 shots. We will also analyze the thickness, angle draft, injection point, etc during these steps for making sure
everything is ok before we start processing.
Mold creation or 3D printing
Simple 3D printing is fully sufficient for simple and small quantity plastic products. Therefore the expensive test mold is not neccessary.3D printing is a very simple process without much
explanation. For another processing, the way is mold creation. This is the most important process in plastic prototyping. We will process the mold according to the tooling design and we will choose
the steel which is softer and easier to carve out. This will help to make mold quickly with a short lead time. Rapid processing is one of the obvious features of the prototype mold. Because we
don't need to make it like production mold as long as it can be operated and good for proving the customer's part design.
Making the prototype plastic molding parts by injection machine
For prototype mold, the plastic parts also need to be molded by a plastic injection machine. The mold will be placed into the injection molding machine and then injected with the plastic prototype
material. Later material will be cooled by the water lines to allow it to create a shape on the cavity. After the cooling process, the mold will be opened when pressure from the clamp is released.
Finally, the part will be ejected from the machine.
Applications of Prototype Mold
There are many applications for prototype molds like automotive, medical. These applications will keep increasing because of the development of new procedures. Here are some of them:
The making of molds – different grades of steel even plastic resin can be made through prototype mold.
The making of cores – SLS application is the latest technology used in sand casting shapes and cores.
The electrodes for EDM, making of marking stamps are some of the applications of prototype molds. Most of the applicated industry at Packson is automotive and medical.
There are many benefits for the prototype molds. With the features of low cost, quick lead time, and effective processing way, it will allow you to bring your parts into the market faster. The most
important advantage is low-cost processing because it can make market testing with low volume production.
Why Choose Packson For Prototype Mold?
Prototype molds serve a different purpose. They are different from the production mold. First, they are pre-production molds which applied in testing and solving issues before a final product gets
into molding processing. With a shorter lead time, prototype molds help create test products with further studies.
Here Packson offers you low-cost prototype molds by alternative means of:
Producing a small batch of molding parts so you can test the physical properties of the production parts
Proofing the concept design for the part and then make improvements for the part
Narrowing down material choosing determine what materials work best
At Packson, your first small steps are a critical part of the larger leap forward. Get your part get into the market quickly with Packson by contacting us today!
As a professional clean room injection manufacturer, Packson Mold provides custom molding services, medical grade plastics injection molding, clean room injection molding and etc. We have amassed
considerable experience and understanding of the practical possibilities in this field. Contact us to know more.
