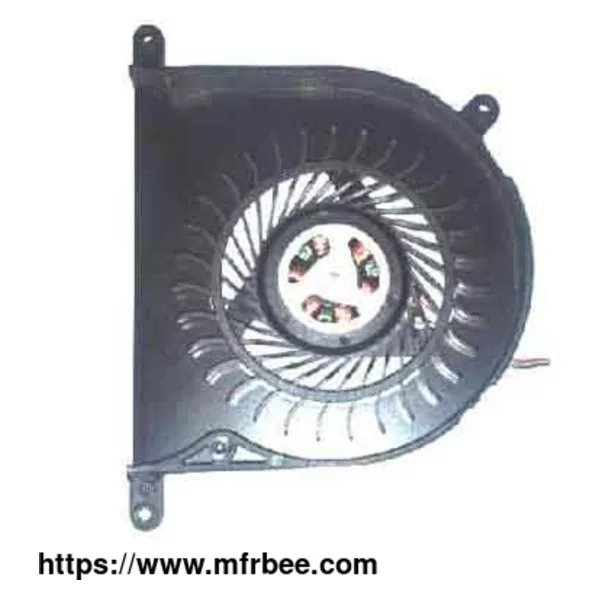

70*70*6.3 DC Centrifugal Blowers

Bearing Type: Two Ball Bearings

Material: Impeller & Frame: Plastic (UL94V-0)

Lead Wires: UL1007#AWG26

Red Wire Positive (+)

Black Wire Negative (一)

Weight: 13.0g

70*70*6.3 DC Centrifugal Blower Specifications

Air volume/pressure curve

Product appearance size

70*70*6.3 DC Small Centrifugal Blower Major Characteristic Parameters

MODEL Bearing Rated Operating Input Speed Maximum Maximum Noise

System Voltage Voltage Current Air Flow Air Pressure

Range

PART NO B/S/F VDE VDE AMP RPM CFM MmH2O Db-A

WSA07006_05L B/S/F 5 3.5~5.5 0.1 3000 / / 25

WSA07006_12L B/S/F 12 7.0~13.2 0.06 3000 / / 25

WSA07006_05M B/S/F 5 3.5~5.5 0.18 4000 / / 27

WSA07006_12M B/S/F 12 7.0~13.2 0.1 4000 / / 27

WSA07006_05H B/S/F 5 3.5~5.5 0.32 5000 / / 30.5

WSA07006_12H B/S/F 12 7.0~13.2 0.2 5000 / / 30.5

WSA07006_05U B/S/F 5 3.5~5.5 0.5 6000 / / 34
