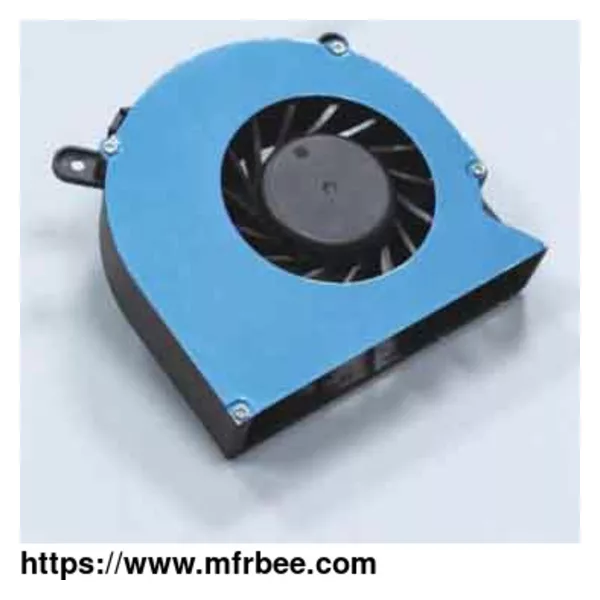

75-130mm Centrifugal Blowers

WHEE DC quiet centrifugal fans with high efficiency, low noise, stepless speed regulation, soft start, smooth operation, long life, energy saving and other characteristics.

Voltage range (model) : 5V/12V/24V/36V/48V.Built-in "soft start" function module, no starting impulse current, effective protection control system electrical components.

75-130mm Centrifugal Blowers Functions

FG: FG Signal

RD: RD Signal

PWM: PWM Signal

VC: Voltage Control

TC: Temperature Control

75-130mm Centrifugal Blowers Specifications

BEARING TYPE F.D. Bearing /One ball /Sleeve bearing/ Two ball

FRAME P B T. UL94V-0

IMPELLER P B T. UL94V-0

P C B UL94V-0

MATERIAL LIST RoHS Compliant

OPERATING TEMPERATURE -10 ℃ ~ + 70 ℃

STORAGE TEMPERATURE -40 ℃ ~ + 70 ℃

DIELETRIC STRENGTH Applied a 500VAC for 1.0 minute or 600VAC for 2 seconds between housing and both lead wires.

INSULATION RESISTANCE At least 10 MΩ at 500VDC between internal stator and both lead wires.

LIFE EXPECTANCY 30,000(S)/40,000(F)/50,000 hrs(2B) in running conditions at 40℃ ambient.

75-130mm Centrifugal Blowers List

75*75*6.7 DC Centrifugal Blowers

75*75*15 DC Centrifugal Blowers

75*75*30 DC Centrifugal Blowers

80*80*18 DC Centrifugal Blowers

80*80*20 DC Centrifugal Blowers

97*97*33 DC Centrifugal Blowers

97*97*33-2 DC Centrifugal Blowers

WHEE is a leading motor cooling fan manufacturer in China, focusing on DC brushless motor cooling fans/cooler and modular design, on products including industrial cooling fan, universal cooling fan china, DC axial fans, centrifugal blowers, frameless fans, micro fans, CPU cooler, and thermal module. Cooperative manufacturer of systematic OEM/ODM products.
