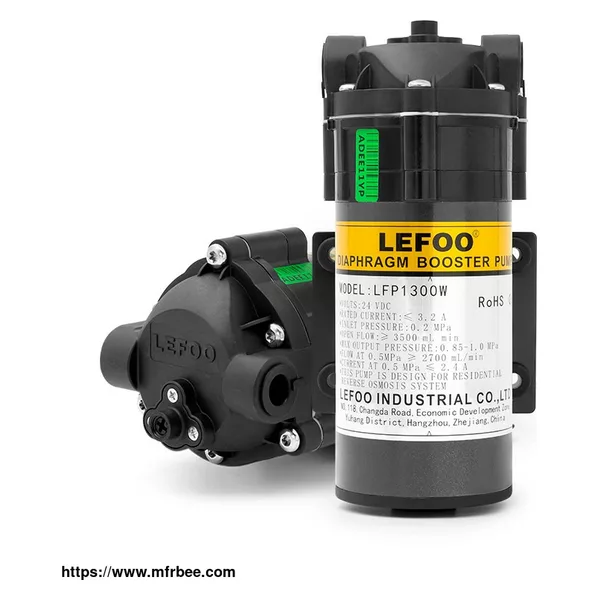

The RO pump of LEFOO is a new generation of Pressure Booster Pumps for water purifiers with production rates up to 300 gallons per day (47.3 liters per hour). Stable pressure feedings of 70 PSI
with workflow ≧2700ml/min. Low current ≧2.4 A which saves 30% energy cost. This pump is super quiet when installed in water purifiers and other reverse osmosis systems. Durable quality from
high-quality parts, low noise because of shock absorb base, save electricity power due to the excellent circuit design, increase the production rates of pure water while reducing the rejection
water rate. CE RoHS approved, LEFOO is your reliable partner in micro pumping technologies.
Specifications of RO Diaphragm Booster Pump 300 GPD
Model LFP1300J LFP1300JD LFP1300JD-A LFP1300W-P LFP1300W LFP1300W-A LFP1300W-A-P
Voltage DC24V
Inlet Pressure 0.2Mpa
Working Pressure 0.5Mpa
Working Current ≦2.3A ≦2.3A ≦2.1A ≦2.4A ≦2.1A
Working Flow ≧2700ml/min ≧2200ml/min ≧2700ml/min ≧2200ml/min
Open Flow ≧4000ml/min ≧3000ml/min ≧3500ml/min ≧3000ml/min
Bypass Pressure 0.8~1.0Mpa
Maximum Current ≦3.2A ≦2.8A ≦3.2A ≦2.8A
Optional Connection 3/8" Male Quick Connection
3/8"NPT
3/8"NPT "0"
3/8"Side Female Quick Connector
3/8"Top Female Quick Connector
Features of RO Diaphragm Water Booster Pump 300 GPD
*High water preventing level.
*Compliant with CE, Rohs, CQC certifications.
*Large flux water outlets with stable pressure and long working life.
*Compact structure consists of robust plastic and metal components.
*DC Powered strong impetus motor with low noise, low vibration level.
*Whole process quality controls in processes of electrical, sealing, and pressure boosting.
Application of RO Diaphragm Water Booster Pump 300 GPD
RO diaphragm water booster pump 300 GPD are generally used in The pump also can be used in Drinking water chillers; Drinking water coolers; Carbonated Drink Machine; Beverage machine; Reverse
osmosis system; medical water purifier; Laboratory water purifier
Carbonation beverage for restaurant,
Espresso Coffee Machine
Water Dispensing and vending
Hydroponics VS Aeroponics
Misting Systems for home
Kitchen/Room Sanitation
Autoclave Systems
Endoscope Reprocessing
Methanol & Water Injection
Humidification System
HVAC system Cleaning
Biopharmaceutical Water
Chemical Boost/Dialysis Chemical Injection
As a pressure transmitter manufacturer, LEFOO provide 300 gpd pump, differential air pressure sensor, differential pressure transmitter, peristaltic pump, etc. Contact us to know more.
