IRRIGATION DISC FILTER

IRRIGATION DISC FILTER

Disc filter in drip irrigation, a thin plastic disc of a specific color is engraved on both sides with a large number of grooves of a certain micro size. A stack of discs of the same pattern is pressed against a specially designed inner support. When the spring and the liquid pressure are pressed, the grooves between the discs cross, thereby creating a deep filtration unit with a series of unique filtration channels.

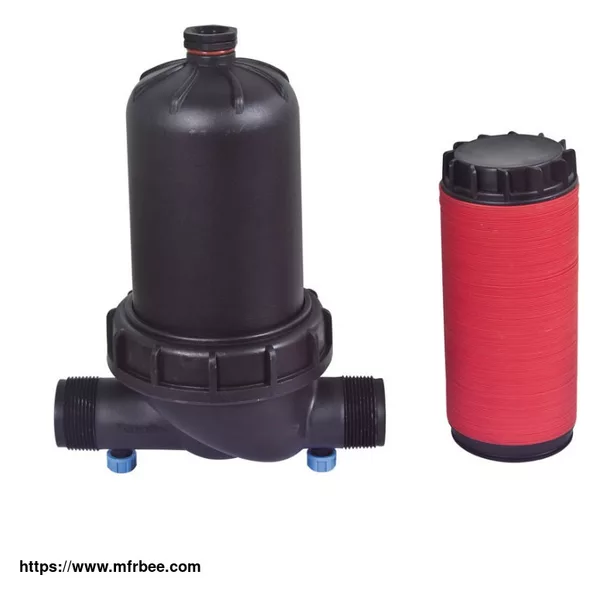

Irrigation Disc Filter

Characteristics of Irrigation Disc Filter

The pvc disc filter for drip irrigation has the characteristics of high-efficiency backwashing, automatic continuous operation, low self-consumption water, small footprint, and reliable operation. The backwashing process of the filter system alternates in turn, and the working and backwashing states are automatically switched. It can ensure continuous water discharge, and the system pressure loss is small, so the technical advantage is very obvious. As a disk filter manufacturer, we provide 1 inch irrigation filter, 3 inch disc filter, 4 inch disc filter for you to choose.

Specifications of Irrigation Disc Filter

ITEM NO SIZE THREAD FILTER ELEMENTS MESH FILTER AREA

(CM2) WP (BAR) MAX FLOW

(M3/H)

1725D120M 3/4" MALE DISC 120 90 10 5

1732D120M 1" MALE DISC 120 90 10 5

1725D120FM 3/4" MALE/FEMALE DISC 120 90 10 5

1750DT120 1-1/2" MALE DISC 120 254 8 15

1740DT120 1-1/4" MALE DISC 120 254 8 15

FDY02120 2" MALE DISC 120 490 8 18

FDY02175 2-1/2" MALE DISC 120 998 8 25

FDT02120M 2" MALE DISC 120 1200 10 30

FDT02120VMV 2" MALE DISC 120 1200 10 30

FDT02120VVM 2" MALE DISC 120 1200 10 30

FDTL02120M 2" MALE DISC 120 1700 10 50

FDTL02120VMV 2" MALE DISC 120 1700 10 50

FDTL02120VVM 2" MALE DISC 120 1700 10 50

FDT03120M 3" MALE DISC 120 1700 10 50

FDT03120VMV 3" MALE DISC 120 1700 10 50

FDT03120VVM 3" MALE DISC 120 1700 10 50

FD04120M 4" MALE DISC 120 2400 10 60

FD04120V 4" DISC 120 2400 10 60

FDL04120M 4" MALE DISC 120 3400 10 100

FDL04120V 4" DISC 120 3400 10 100

FD03120M 3" MALE DISC 120 2400 10 60

FD03120V 3" DISC 120 2400 10 60

FDL03120M 3" MALE DISC 120 3400 10 100

FDL03120V 3" DISC 120 3400 10 100

FDTA02120M 2" MALE DISC 120 1650 50 50

FDTA02120VMV 2" MALE DISC 120 1650 50 50

FDTA02120VVM 2" MALE DISC 120 1650 50 50

FDTA03120M 3" MALE DISC 120 1650 50 50

FDTA03120VMV 3" MALE DISC 120 1650 50 50

FDTA03120VVM 3" MALE DISC 120 1650 50 50

FDA03120M 3" MALE DISC

FDA03120V 3" DISC

FSLA04120M 4" MALE SCREEN 120 1650 100 100

FSLA04120V 4" SCREEN 120 1650 100 100

As a sprinkler system manufacturer, Seapeak focuses on the production of various accessories for irrigation systems, and we can also provide you with the irrigation system solutions you need. The two main types of irrigation systems we provide are drip irrigation system & micro spray sprinkler irrigation system. Good quality and competitive price, please choose us!
