320 InGaAs QVGA Area Sensor

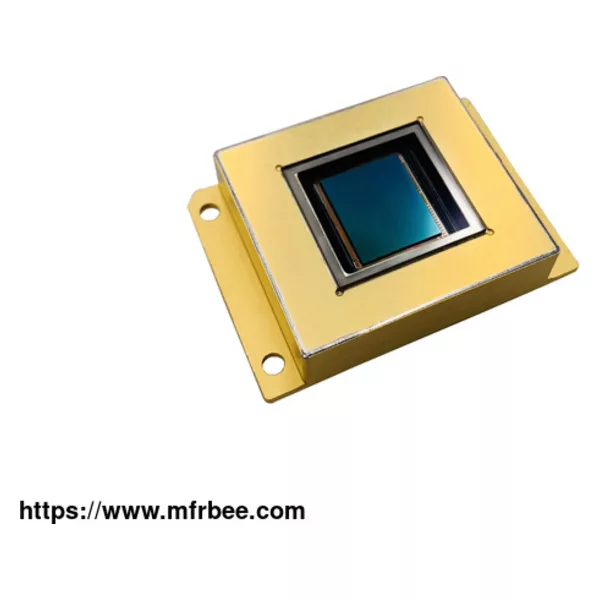

GH-SW320 InGaAs area image sensors are two-dimensional image sensors that have a hybrid structure consisting of a CMOS readout circuit (ROIC: readout integrated circuit) and back-illuminated InGaAs photodiodes for short wavelength infrared (SWIR, 900nm-1700nm) and extended wavelength infrared (Vis-SWIR, 400nm-1700nm) regions.

The detector can be supplied in two types of metallic package:

Nitrogen & Vacuum, which both include a Thermo-Electric Cooler (TEC)

It is well-adapted to a large range of applications, such as surveillance, hyperspectral imaging, remote sensing, machine vision, industrial sorting, process inspection, and science.

TECHNICAL INFORMATION OF GH-SW320

Key Features GH-SW320

Sensor Type InGaAs PIN-Photodiode

Format 320 x 256

Pixel Pitch 15 μm

Spectral Response 0.9µm-1.7µm / 0.4um-1.7µm (optional)

Integration Type Snapshot

Readout Modes ITR , IWR , CDS

Exposure Time 2μs to full frame

Maximum Full Frame Rate 500 Hz

Maximum Pixel Rate 18MHz

Output Signal Swing ≤2V

Temperature Sensor Output Yes

Quantum Efficiency(QE) >70% ( 1.0um ~ 1.6um ）

Noise with ROIC 35e- @HG

Dark Current 30fA @ 0.1V&18℃

Array Operability > 99.5% ( Minimum )

Non Uniformity without Correction ＜ 5%

Dimension (W x H x D) 36 mm x 25.4 mm x 7.2 mm

Windows Quartz / Sapphire

Number of Pins 28-pin Metal DIP Package

Packaging Characteristics Hermetically Sealed

Operating Temperature - 40℃ to 70℃

Storage Temperature - 40℃ to 70℃

If you want to know more about swir meaning, please contact us.

SWIR Sensors

Standard swir wavelength range of 0.9 μm to 1.7 μm, or extended wavelength range of 0.4 μm to 1.7 μm, linear and focal plane arrays.
