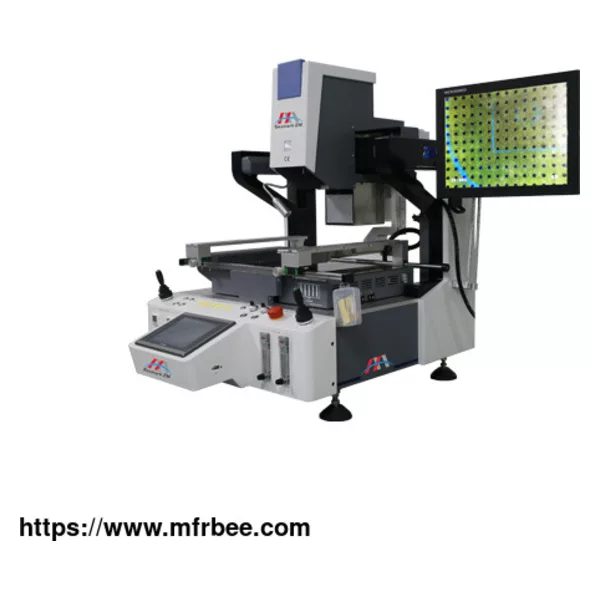

ZM-R7830A Smart Optical BGA Rework Station
Product Quick Detail
- Place Of Origin
- Bao'an, Shenzhen
- Minimum Order
- 500
- Packaging
- Wooden Box
- Delivery
- 15days
Specifications
R7830A is an optical alignment automatic rework equipment. It also works as laser BGA SMD rework zm station, multi-language menu interface, automatic feeding device, X/Y AXI machine that can be
controlled by joystick, fast and convenient operation, imported high-definition CCD (2 million pixels) optical alignment system, high Precision temperature control sensor system, precise
temperature control.
As one of the most reliable laser smd rework station manufacturers, Seamark ZM provides the best BGA machine for motherboards with good quality.
Functions of R7830A Laser SMD Rework Station
00 X/Y/Z Axis Automatic Displacement
The top temperature zone of the Laser SMD Rework Station is controlled by the joystick control servo system, which can automatically move and align at fast/slow speed by X/Y/Z Axis.
01 Vacuum Adsorption and Nitrogen Protection
The top heating head has a built-in vacuum suction nozzle for chip adsorption, electrically controlled 360-degree rotation alignment, with negative pressure monitoring and pressure protection
device. The bottom temperature zone of the Laser SMD Rework Station adopts a large-area heating wire layout, moves symmetrically with the top temperature zone, and can be connected with nitrogen to
prevent PCBA from yellowing.
Features of R7830A Laser SMD Rework Station
Multilingual menu interface
Automatic feeding device
X/Y axis can be controlled by joystick, operation is quick and convenient
Imported high-definition CCD (2m pixels) optical alignment system
High-precision temperature control sensing system.
As one of the top BGA Rework Station suppliers in China, Seamark ZM is famous for its rich technical force, complete detection means, reliable product quality, full service. If you want to know
some different types of BGA repair machines and to get a perfect kind of repair machine for your factory, please contact Seamark ZM first.
Specification Of ZM R7830A Laser SMD Rework Station
Power Supply AC380V±10% 50/60HZ
Power 7.15KW(Max), Top heater(1.45KW) Bottom heater (1.2KW), IR Preheater (4KW), Other(0.5KW)
PCB Size 565*467mm(Max); 6*6mm(Min)
BGA Chip Size 80*80mm(Max); 2*2mm(Min)
IR Heater Size 500*380mm
Motion Control X/Y/Z
Temperature Sensor 5 Pcs
Operation Method 8" HD touch panel
Control System Panasonic PLC + Temperature control module
Display System 15" HD industrial display ( 1080P 16:9)
Alignment System 2 Million Pixel HD digital imaging system, automatic optical zoom with laser red-dot indicator
Vacuum Adsorption Automatic
Alignment Accuracy ±0.01mm
Temperature Control K-type thermocouple closed-loop control with accuracy up to ±1℃
Feeding Device Yes
Positioning V-groove with universal fixture
Dimensions L810*W1100*H960mm
Weight 151KG
We also have types of automatic reballing machine for sale, if you have needs, please contact us.
As a x ray inspection machine manufacturer, we will do our best to meet all the needs of customers.
