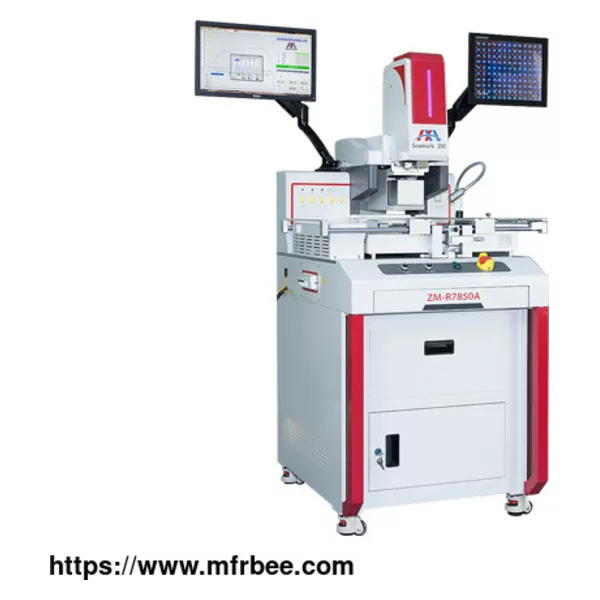

ZM-R7850A Smart Optical BGA Rework Station
Product Quick Detail
- Place Of Origin
- Bao'an, Shenzhen
- Minimum Order
- 500
- Packaging
- Wooden Box
- Delivery
- 15days
Specifications
R7850A PCB smart optical BGA smd rework station machine is an optical alignment automatic rework equipment. This BGA Soldering Machine has multi-functional control features, convenient temperature
setting and storage, bottom heating system, smoke purification system, high-definition zm optical alignment module. As one of the most reputable suppliers, Zhuomao promises to produce the best SMD
BGA Rework Station at a reasonable price for customers.
Functions of R7850A BGA Soldering Machine
00 Multifunctional Control Features
Industrial PC control, can set a variety of operating modes, real-time display of temperature curve, each curve can be set to more than 12 segments, it can automatically analyze the curve, and
automatically save the temperature curve to generate a large number of log files to facilitate the recall of historical parameters for traceability.
01 Convenient Temperature Setting and Saving
Three temperature zones independently controlled by programming, convenient and quick setting of temperature parameters and temperature saving records, the top zone uses ceramic heaters, built-in
vacuum tube is used for chip adsorption, electric control 360 degree rotation alignment, with pressure protection device, dual over-temperature protection and alarm function, software design has
encryption and foolproof functions.
02 Bottom Heating System
The medium-wave ceramic infrared heating plate imported from Germany is adopted, and the bottom temperature zone can be independently heated to adjust the distance from the PCB like a infrared BGA
rework station. Fast temperature rise and high temperature control accuracy can effectively solve PCBA preheating and rework temprature.
03 Smoke Purification System
The built-in three-level smoke purification system can filter and purify the toxic gas generated in the work, effectively protecting the environment.
04 HD Optical Alignment Module
Imported HD CCD (2m pixels) optical alignment system, through the PC control system X/Y automatically moves the optical lens alignment, using 15' HD industrial display (1080P 16: 9) and 18.5' SD
display operation. Equipped with automatic feeding device to realize feeding and receiving automatically.
As one of the top BGA Rework Station suppliers in China, Seamark ZM is famous for its rich technical force, complete detection means, reliable product quality, full service. If you want to know
different types of BGA repair machines and to get a perfect kind of repair machine for your factory, please contact Seamark ZM first.
Specification Of ZM R7850A BGA SMD Rework Station
Power Supply AC380V±10% 50/60HZ
Power 9.85KW(Max)，Top heater(1.45KW) Bottom heater (1.2KW)，IR Preheater (6.6KW), Other(0.6KW)
PCB Size 635*520mm(Max);6*6mm(Min)
BGA Chip Size 80*80mm(Max);2*2mm(Min)
IR Heater Size 565*435mm
Motion Control X/Y/Z
Temperature Sensor 5 Pcs
Control System Industrial PC+ Motion control system
Display System 15" HD industrial display ( 1080P 16:9)+18.5" SD display
Alignment System 2 Million Pixel HD digital imaging system, automatic optical zoom with laser red-dot indicator
Vacuum Adsorption Automatic
Alignment Accuracy ±0.01mm
Temperature Control K-type thermocouple closed-loop control with accuracy up to ±1℃
Feeding Device Yes
Positioning V-groove with universal fixture (shaped fixture can be customized)
Dimensions L835*W960*H1640mm
Weight 218.5KG
We also have types of laser reballing machine for sale, if you have needs, please contact us.
As a x ray pcb inspection machine manufacturer, we will do our best to meet all the needs of customers.
