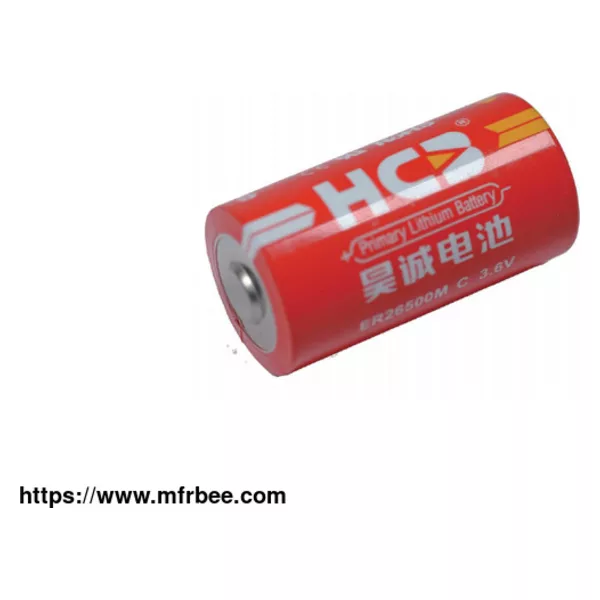

ER26500M Li-SOCl2 Cylindrical Battery

ER26500M Sipral Non-Rechargeable C Size Long Shelf Life 7000mAh Li-SOCl2 Battery 2000mA Pulse 3.6V for Gas Meter, energy meter, water meter.

Advantage Of Er26500m Battery

High and Stable Voltage

Energy Density up to 935Wh/L

Long Shelf Life (less than 1% per year after 1 year of storage at +25℃)

Wide Operating Temperature (-55℃~+85℃)

Specification of ER26500M Li-SOCl2 Cylindrical Battery

Electrical characteristics Open circuit voltage (at 25°C) ≥3.65V

Nominal capacity 7000mAh

(At +25°C, battery discharged at continuous current 10mA until voltage reaches cut-off voltage 2.0V. The capacity can vary at different temperature, discharge current or cut-off voltage.)

Maximum continuous current 1000mA

(At +25°C, 2.0V cut-off, battery discharged for minimum 50% of nominal capacity. )

Maximum pulse discharge current 2000mA

(At +25°C, 2.0V cut-off, battery discharged for minimum 50% of nominal capacity with max pulse for 3 seconds after 27 seconds break. The discharged capacity may vary according to the pulse characteristics, the temperature, and the cell’s previous history. Fitting the cell with a capacitor may be recommended in severe conditions, consult HCB.)

Storage (recommended) ≤+30°C

(For more severe conditions, consult HCB) ≤75%RH

Operating temperature range -55°C~+85°C

(Operation above ambient temperature may lead to reduced

capacity and lower voltage readings at the beginning of pulses, consult HCB.)

Physical characteristics Diameter 25.6±0.3mm

Height 50.1±0.8mm

Typical weight 53.0g

Li metal content 2.01g

Drawing of ER26500M Li-SOCl2 Battery
