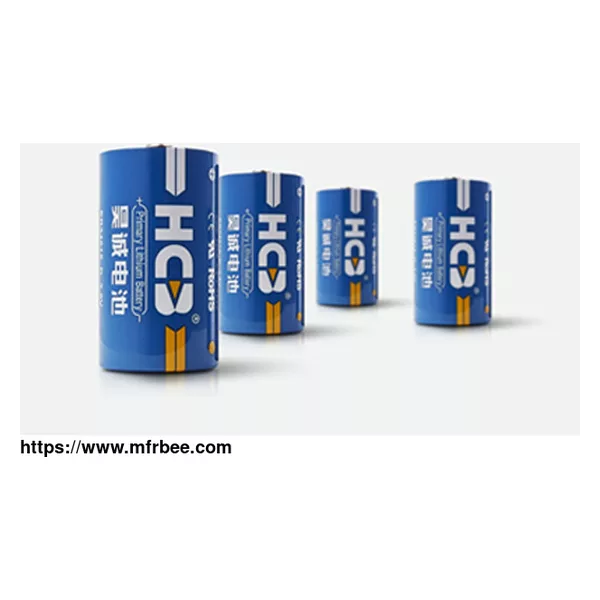

ER34615 Li-SOCl2 Cylindrical Battery

3.6 Volt primary Lithium Battery Non-Rechargeable ER34615 D Size 19000mAh Lithium-Thionyl Chloride (Li-SOCL2) battery for Utility Metering, Automatic meter reading(AMR), advanced metering infrastructure(AMI), electricity meters, gas meters, water meters, heat meters.

Details of ER34615 Li-SOCl2 Cylindrical Battery

Product Details

Place of Origin China

Brand Name HCB

Certification UN/CE/UL

Model Number ER34615 Bobbin type D size

Payment & Shipping Terms Details

Minimum Order Quantity 1K pcs

Price contact with HCB battery

Packaging Details Special design for Air/Sea/Courier transportation

Delivery Time ≤35days

Payment Terms T/T, L/C, PayPal

Supply Ability two million unit per month

Advantage of Er34615 Lithium Battery

High and Stable Voltage

Energy Density up to 590Wh/kg

Long Shelf Life (less than 1% per year after 1 year of storage at +25℃)

Wide Operating Temperature (-55℃~+85℃)

Specification of Er34615 Li-SOCl2 Cylindrical Battery

Electrical characteristics Open circuit voltage (at 25°C) ≥3.65V

Nominal capacity 19000mAh

(At +25°C, battery discharged at continuous current 2mA until voltage reaches cut-off voltage 2.0V. The capacity can vary at a different temperature, discharge current or cut-off voltage.)

Maximum continuous current 250mA

(New cell*, at +25°C, 2.0V cut-off, battery discharged for minimum 50% of nominal capacity.)

Maximum pulse discharge current 400mA

(400 mA/0.1 second pulses, drained every 2 minutes at +25°C from undischarged the new cell with 10 uA base current, yield voltage reading above 3.0V. The readings may vary according to the pulse characteristics, the temperature, and the’s previous history. Fitting the cell with a capacitor may be recommended in severe conditions, consult HCB.)

Storage (recommended) ≤+30°C

(For more severe conditions, consult HCB) ≤75%RH

Operating temperature range -55°C~+85°C

(Operation above ambient temperature may lead to reduced capacity and lower voltage readings at the beginning of pulses, consult HCB.)

Physical characteristics Diameter 32.7±0.2mm

Height 60.4±0.8mm

Typical weight 105.0g

Li metal content 5.2g

Drawing of ER34615 Li-SOCl2 Cylindrical Battery

As a lithium battery china manufacturer,HCB is committed to the primary lithium battery field, with a full range of primary lithium battery R&D capabilities and boasting the longest history of lithium battery China production.
