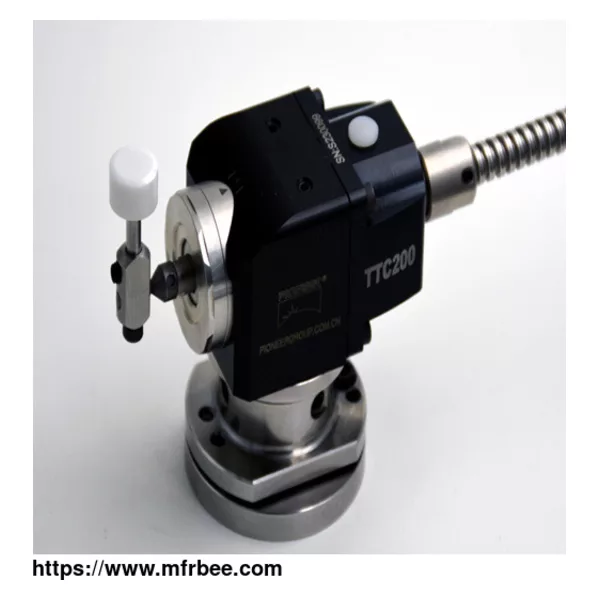

TTC200 cable tool setter system includes a tool setter unit,blow-cleaning device(optional), and standard measuring software. TTC200 tool setter with hard-wired signal transmission used for broken
tool detection and rapid measurement of tool length and diameter on a wide range of tools.
If you are interested in diy cnc tool height setter, please contact us for tool height setter and tool height presetter!
TTC200 cable tool setter system includes a tool setter unit,blow-cleaning device(optional), and standard measuring software. TTC200 tool setter with hard-wired signal transmission used for broken
tool detection and rapid measurement of tool length and diameter on a wide range of tools.
If you are interested in diy cnc tool height setter, please contact us for tool height setter and tool height presetter!
Parameter of TTC200 CNC Tool Height Setter System
TTC200:
Measuring direction ±X, ±Y, -Z
Repeatability (2σ) ≤ 2 μm;
Diameter of the touching face 12.7±0.005mm
Hardness of the touch face HM8.5
Input voltage 24±10% VDC
Output load current 50 mA
Seal grade IP68
Application of TTC200 CNC Tool Height Setter System
For tool measuring and broken tool detection on all sizes of vertical and horizontal machining centers and all gantry machining centers.
Measure tool length and diameter, detect tool wear and breakage automatically
Tool condition monitoring, tool geometry update
Technology of TTC200 CNC Tool Height Setter System
TTC200 can not only measure tool length, but also tool diameter
The position of the tool setter pillar can be roughly and precisely adjusted by the connecting link of the pillar and the adjusting link of the tool setter for mounting.
Rotating tools can be checked without wear to the tool or stylus.
Pioneer is a professional probe manufacturer, we provide spindle probe, cnc height setter, length tool setter, cnc measuring probe and etc. Want to know more? Please contact us.
