TP400 Cable Probe

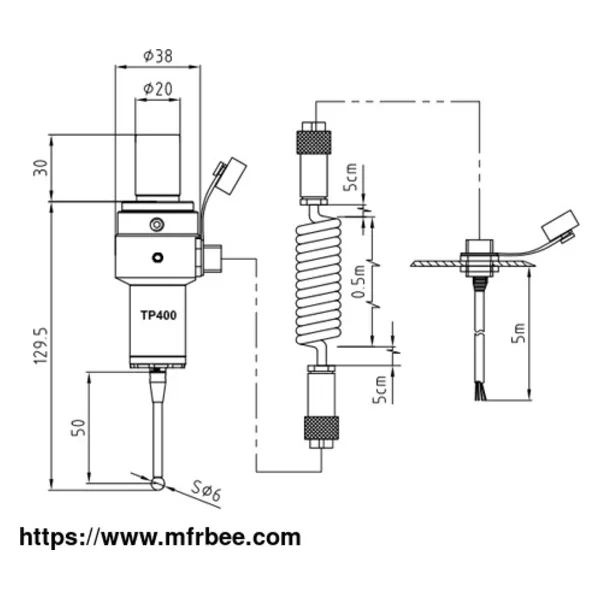

TP400 cable probe system mainly used in various specifications of CNC grinding machines, CNC lathes, and especially measuring devices. TP400 CNC digitizing cable probe system includes a TP400 trigger probe unit, two four-core, oil-proof shielded cables,s and standard measuring software.

TP400 Cable Probe

TP 400 cable probe system mainly used in various specifications of CNC grinding machines, CNC lathes, and especially measuring devices. TP400 CNC digitizing cable probe system includes a TP400 trigger probe unit, two four-core, oil-proof shielded cables,s and standard measuring software.

Parameter of TP400 CNC Digitizing Cable Probe

TP400：

Measuring direction ±X，±Y，+Z

Arbitrary direction swinging angle X-Y±12°, Z +5 mm

Repeatability （2σ） ≤ 2 μm；

Trigger force in Z direction 1000（g）

Trigger force in X-Y direction 65-130（g）

Input voltage 24±10% VDC

Model of the standard stylus M4-P50-RB6-S36

Seal grade IP68

Application of TP400 CNC Digitizing Cable Probe

TP400 probe is widely used in CNC machine to do wheel refurbishment and repair

TP400 probe used in a milling machine to set work-piece coordinate

TP400 probe used in some special machine to set machine zero points and inspection

Technology of TP400 CNC Digitizing Cable Probe

The probe has a signal interface circuit inside, eliminate the need to install and set up the interface module.

TP400 logic state of the output signal can be reversed normally closed or normally open by changing the power supply's polarity.

The probe uses two pieces of cable to transmit signals, one of the spiral cables has aviation plugs at both ends, which can be quickly installed and discounted, providing convenience for the application of the probe in different types of equipment.

As a professional probe factory, Pioneer has high-quality touch probe software for sale. Welcome to contact us if needed.
