Baby Diaper Machine (DC-BD-550)
Product Quick Detail
- Place Of Origin
- China(Mainland)
- Packaging
- wooden case
- Delivery
- 65 Days
Specifications
I. Introduction
Model name: DC-BD-550

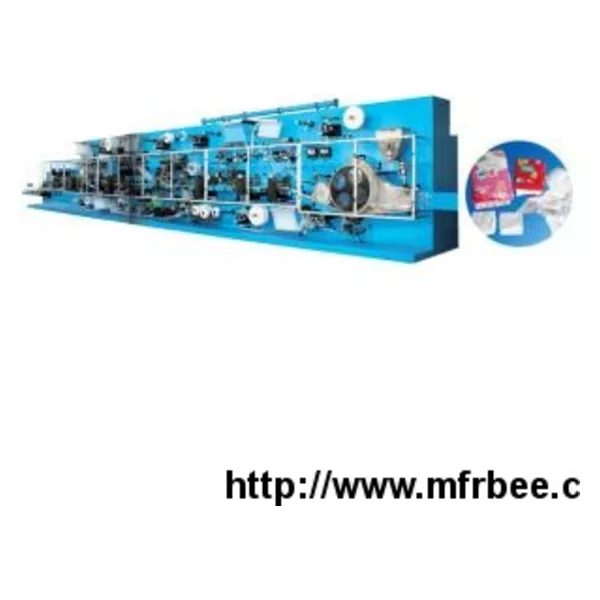

This machine is used to produce baby diapers as the picture shown above.
II. Function and Features:
1. Crusher System（crush untreated fluff pulp for one time）.
2. Fluff pulp feeding device and SAP dispensing device are controlled by
independent frequency inverter.
3. Equipped with cotton core web wheel (or mold wheel) forming and gridding embossing device.
4. Elastic waist, leakage barrier, frontal waist tapes and side waist tapes are available.
5. Main materials unwinding adopts permanent tension control, main shaft driving.
Production processes automatically control, and change material rolls without stopping the machine and decelerating. There is material auto checking device and
can reject defected products.
6. The main material adopts air expanding feeding shaft and automatic edge rectifying device.
7. Frontal waist tapes can use forming material or spreading glue on the machine (the pattern
can be cut as positioned)
8. Bottom film is compounded with PE film and non-woven fabrics.
9. Compact the product after compounding.
10. The machine is automatically controlled by PLC and the whole machine driving is controlled by frequency conversion.
11. There is touch screen on the operating table. Touch screen operation terminal provides man-machine conversation interface, realizing picture digital control (setting of
various parameters, production speed , shift output and trouble display).
12. Products arrangement output device.
13. Safety device is equipped on the operation panel.
14. Stacker is optional according to customer’s requests.
III. Main Parameters
1. Production speed: 400-500pcs/min
2. Product size : XL、L、M、S
3. The qualified rate of the products reaches 97％(excluding the waste and unqualified products caused by material splicing and glue applicator)
4. Power source： 380V±5％，50Hz Three phase, four lines + Earth Connection
Power Consumption： 150 KW
5. Approx. machine dimensions:19.5m (L)× 2.1m(W) ×2.8m (H) (According to product requests.)
IV. Export Details
1. Delivery time: 65 days (It takes time to ensure the processing precision, assembling precision, etc. Of course, the delivery time can be discussed as the case may
be.)
2. Load port: Xiamen port in Fujian Province
3. Packing: In standard export wooden cases
4. Container: 1 x 20 feet container，3 x 40 feet containers (It depends on the quantity of the machines you buy ).
5. Machine installation and operation training: The seller should dispatch professional technicians and engineers to buyer’s plant to install the machine and train the workers. The
round air ticket, accommodation and salary should be paid by buyer.
6. Warranty period: One year(Except easy damaged parts), and will provide long term services including providing spare parts at low price and will heart and soul help the buyer to
solve any problem may occur.
7. Our company also provides the raw material to match with the machine.
