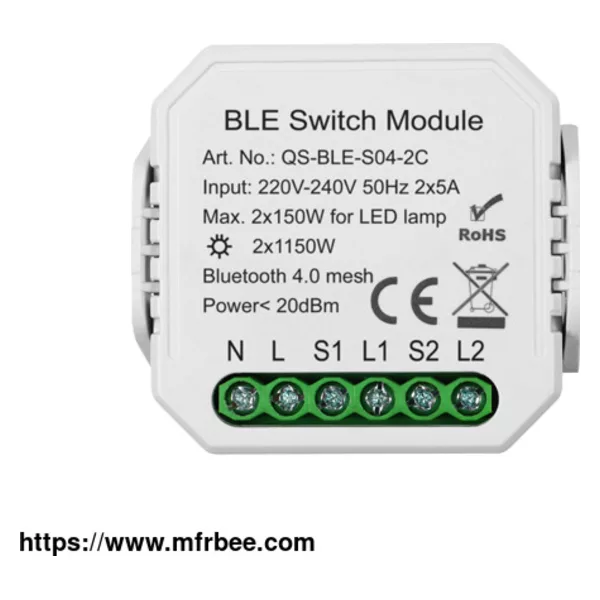

2 Gangs Bluetooth Switch Module

This 2 gangs Bluetooth Switch Module connect to mobile app or smart speaker by bluetooth signals. Bluetooth communication is an emerging short-distance, low-cost, and high-speed wireless network technology with high communication efficiency.

Different Types Of 2 Gangs Bluetooth Switch Module

2 channel bluetooth relay module

QS-BLE-S04-2C

2 Gangs Smart Bluetooth Switch Module

Voltage 220-240V AC

Max. load: 2x5A, 2x1150W / 2x150W for LED lamp

Dims (WxDxH): 46x46x18mm

Parameters Of 2 Gangs Bluetooth Switch Module

Protocol Bluetooth 4.0 Wireless Mesh

Operation temp. -10ºC - +40ºC

Operation range ≤ 10 m

IP rating IP20

Certificates CE ROHS

Warranty 2 years

Features Of 2 Gangs Bluetooth Switch Module

Compatible with most Bluetooth 4.0 mesh gateway.

2 gangs to control more devices according to your needs.

With BLE Mesh Gateway, the distance between Phone and Device can be more than 10m.

With no BLE mesh gateway, the distance between Phone and Device is 10m.

Easy to install behind the existing switch, keep function of manual switches.

App control is synchronized with the manual switch.

Voice control compatible with Google home and Amazon Alex etc.

Schedule,group, scene, automation functions organizable with other smart home devices,easily achieve home automation.

Accept customer customization for logo, color box. etc.

Quality Standard Of 2 Gangs Bluetooth Switch Module

Quality Standard Of

EN 300 328 V2.1.1 (2016-11),

EN 301489-1 V2.1.1 (2017-02),

EN 301489-17 V3.1.1 (2017-02),

EN 62311: 2008, EN 61000-6-1:2007,

EN 61000-6-3:2007+A1:2011

Safety Standard (LVD)

IEC 60669-2-1:2002 / AMD1:2008 / AMD2:2015,

IEC 60669-1:1998 / AMD1:1999 / AMD2:2006,

EN 60669-2-1: 2004+A1: 2009+ A2: 2010,

EN 60669-1:2018

Radio Equipment (RED)

ETSI EN 300 328 V2.1.1 (2016-11)

RoHS Standard (RoHS)

2011/65/EU, (EU) 2015/ 863.
