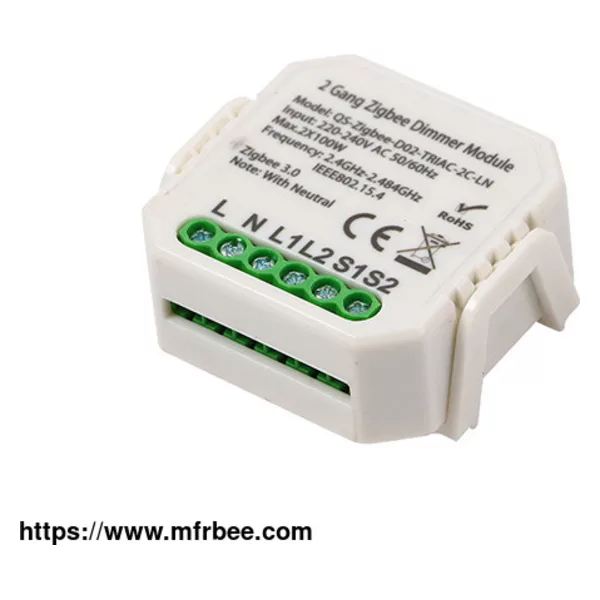

2 Gangs Zigbee Dimmer Module

This 2 gangs smart dimmer module is linked to mobile phone by Zigbee signals. ZigBee technology is with high security which comes from its systematic design. Its low-power technology and strong networking capability allows this 2 gang zigbee dimmer module to be widely used in the field of smart homes.

Different Types Of 2 gang zigbee dimmer Module

smart dimmer zigbee

zigbee box dimmer

QS-Zigbee-D02-TRIAC-2C-LN

2CH WIFI Dimmer Module with Neutral

Voltage 100-240VAC

Max. load: 2x100W

Dims (WxDxH): 46x46x18mm

zigbee box dimmer

QS-Zigbee-D02-TRIAC-2C-L

2CH WIFI Dimmer Module without Neutral

Voltage 100-240VAC

Max. load: 2x100W

Dims (WxDxH): 46x46x18mm.

Parameters Of 2 Gangs Zigbee Dimmer Module

Protocol zigbee 3.0 dimmer

Dimming type Trailing Edge

Operation frequency 2.4-2.484GHz IEEE 802.15.4

Operation temp. -10ºC - +40ºC

Case temp. Tc +80ºC (Max.)

Operation range ≤ 200 m

IP rating IP20

Certificates CE ROHS

Warranty 2 years

Features Of 2 Gangs Zigbee Dimmer Module

Compatible with most Zigbee 3.0 gateway.

With/Without neutral wire.

2 gangs to control more devices according to your needs.

Easy to install behind the existing dimmer switch, keep function of manual dimmer switches.

App control is synchronized with the manual dimmer switch.

Voice control compatible with Google home and Amazon Alex.

Mininum brightness is settable.

Schedule, group, scene, automation functions organizable with other smart home devices, easily achieve home automation.

Quality Standard Of 2 Gangs Zigbee Dimmer Module

EMC Standard (EMC)

EN 61000-6-1:2007

EN 61000-6-3:2007+A1:2011

EN 301 489-1 V2.1.1

EN 301 489-17 V3.1.1

EN 300 328 V2.1.1

EN 62311:2008

Safety Standard (LVD)

IEC 60669-2-1:2002 / AMD1:2008 / AMD2:2015,

IEC 60669-1:1998 / AMD1:1999 / AMD2:2006,

EN 60669-2-1: 2004+A1: 2009+A2: 2010,

EN 60669-1:2018

Radio Equipment (RED)

ETSI EN 300 328 V2.1.1 (2016-11)

RoHS Standard (RoHS)

2011/65/EU, (EU) 2015/863.
