2 Gangs Zigbee Switch Module
Product Quick Detail
- Place Of Origin
- Shenzhen, Guangdong, China
- Minimum Order
- 2000
- Packaging
- white box, colorful box, customized package
- Delivery
- 7-15 days
Specifications
This is zigbee 2 gang light switch Module. You can choose the module has or has no neutral wire according to yur needs. The devices connected to our smart switch module can be linked to your mobile
phone by Zigbee signals. Then you can control 2 different channels by one mobile app.
D
ifferent Types Of 2 gang zigbee switch Module
2 gang zigbee switch
2 channel zigbee switch module

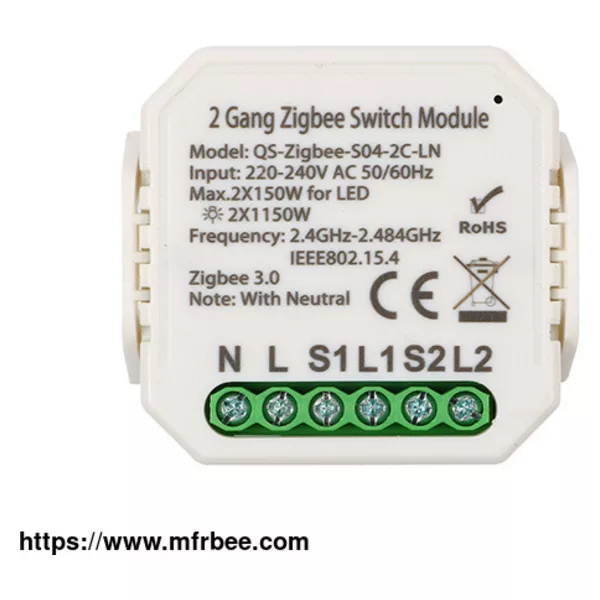

QS-Zigbee-S04-2C-LN
2 Gangs Smart Zigbee Switch Module with neutral wire
Voltage 100-240V AC
Max. load: 2X1150W
Dims (WxDxH): 46x46x18mm
With reset key
zigbee 2 way switch
zigbee two way switch
QS-Zigbee-S04-2C-L
2 Gangs Smart Zigbee Switch Module with no neutral wire
Voltage 100-240V AC
Max. load: 2x100W for LED
Dims (WxDxH): 46x46x18mm
With reset key
Parameters Of 2 Gangs Zigbee Switch Module
Protocol Zigbee 3.0
Operation frequency 2.4-2.484GHz IEEE802.15.4
Operation temp. -10ºC - +40ºC
Case temp. Tc +80ºC (Max.)
Operation range ≤ 200 m
IP rating IP20
Certificates CE ROHS
Warranty 2 years
Features Of zigbee 2 gang Switch Module
Compatible with most Zigbee 3.0 gateway.
With/Without neutral wire.
2 gangs to control more devices according to your needs.
Mininum brightness is settable.
Easy to install behind the existing switch, keep function of manual switches.
App control is synchronized with the manual switch.
Voice control compatible with Google home and Amazon Alex etc.
Schedule,group, scene, automation functions organizable with other smart home devices,easily achieve home automation.
Accept customer customization for logo, color box. etc.
Quality Standard Of 2 Gangs Zigbee Switch Module
EMC Standard (EMC)
EN 301 489-1 V2.1.1,
EN 301 489-17 V3.1.1,
EN 300 328 V2.1.1 (2016-11),
EN 61000-6-1:2007,
EN 61000-6-3:2007+A1:2011,
EN 62311:2008
EN 60669-2-1: 2004 +A1: 2009+ A12: 2010;
EN 60669-1: 2018; EN 62493: 2015
Safety Standard (LVD)
IEC 60669-2-1:2002 / AMD1:2008 / AMD2:2015,
IEC 60669-1:1998 / AMD1:1999 / AMD2:2006
Radio Equipment (RED)
2014/53/EU – Article 3.1(a), 3.1(b) & article 3.2
RoHS Standard (RoHS)
2011/65/EU, (EU) 2015/863.
Aihomestyle provides zigbee 3.0 wall switch, zigbee 3.0 light switch, smart switch zigbee and etc. For more information, please feel free to contact us!
