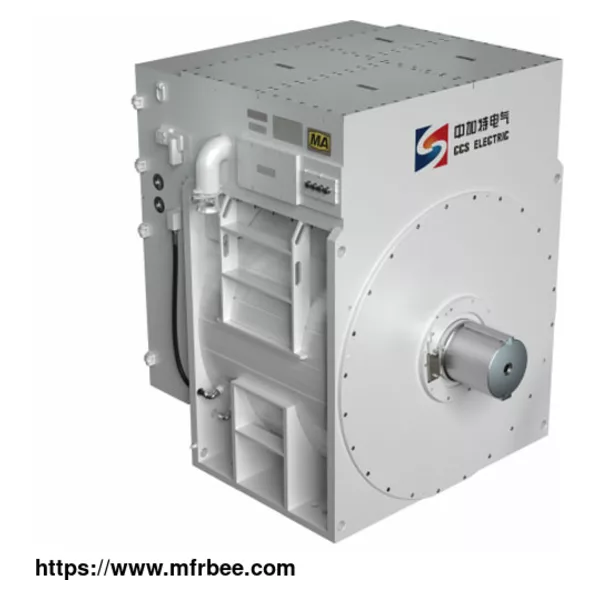

PM Integrated VFD Motor

FOB Price: USD $100,000.00 / Piece
Place Of Origin: China

Minimum Order: 1

Packaging: N/A

Delivery: 60 Days

Intelligent permanent magnet direct drive system is a comprehensive solution for equipment drive and control technology. VFD synchronous motor takes permanent magnet direct drive technology as the core and adopts special frequency converter, permanent magnet synchronous frequency conversion motor, and water cooler to replace traditional mechanical drive devices such as asynchronous motor, reducer and hydraulic coupler. At present, VFD synchronous motor is widely used in mines, coal, ports, electric power, building materials, chemical industry, and other fields.

Specifications of the PM Integrated VFD for Synchronous Motor

Voltage range 380V/400V/600V/660V/3300V/4160V/6000V/6600V/10000V

Frequency 50Hz/60HZ

Voltage fluctuation range at grid -15%-10%

Frequency fluctuation at grid ±0.2Hz

Speed range 60rpm,75rpm,90rmp and so on

Output frequency 0-50Hz/60Hz

Power rating 45kW-2000kW

VFD principle Voltage source inverter

Motor type Synchronous motor

Control method V/F or DTC without sensor

Starting torque 2 times

Frequency resolution 0.01Hz

Ingress protection IP54 pr IP55

Installation IMB3 or IMB5

Communication CAN、RS485、Profinet、Ethernet IP etc

PM Motor with Integrated VFD Schematic

Model Power（kW） Speed（rpm） Torque（Nm） weight（kg）

STJVFT55-2-**x**（1140） 55 75 7003 2100

TJVFT-250/40YC(1140) 250 90 26530 8000

TJVFT-315/60YC(1140) 315 60/75 50137/40110 10900

TJVFT-400/60YC(1140) 400 60/75 63666/50933 13500

TJVFT-450/60YC(1140) 450 60/75 71625/57300 13500

TJVFT-500/60YC(1140) 500 60/75 79583/63666 14000

TJVFT-560/60YC(1140) 560 60/75 89133/71306 14000

TJVFT-800/60YC(1140) 800 60/75 127333/101866 16000

TYJVFT-900L/80YC(10) 1000 60 159167 21000

For more information about vfd electric motor and transmission substation equipment, please feel free to contact us!
