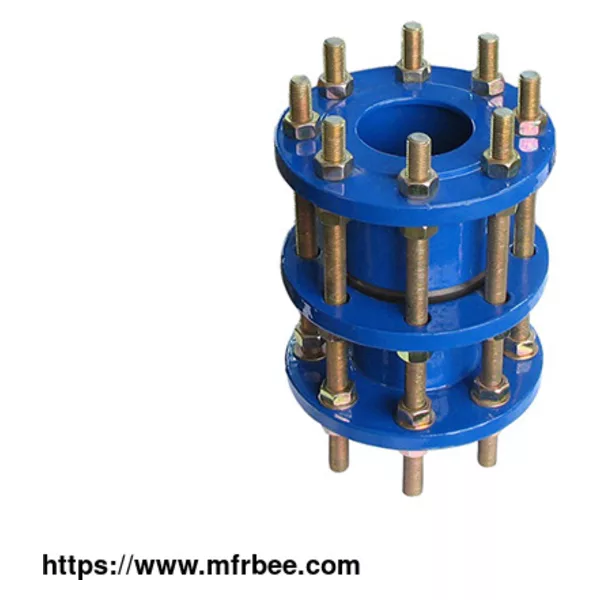

The pipe dismantling joints are double flanged fittings that accommodate up to longitudinal adjustment and can be locked at the required length with the tie bars supplied. It is a new product that is connected to the pipe, valve, and other equipment and pipelines. It connects them through full bolts to make it a whole, and there is a certain displacement so that it can be adjusted according to the site installation specifications this allows for fast, easy maintenance of valves, pumps, or meters, it simplifies future pipework modifications and reduces downtime

DN φ d1 d2 d3 d4-n b L1 L δ

50 50 165 125 102 18-4 18 330 200 40

65 65 185 145 122 18-4 18 330 200 40

80 80 200 160 138 18-8 20 330 200 40

100 100 220 180 158 18-8 20 330 200 40

125 125 250 210 188 18-8 22 330 200 40

150 150 285 240 212 22-8 22 340 200 40

200 200 340 295 268 22-8 24 340 200 40

250 250 395 350 320 22-12 26 340 200 40

300 300 445 400 370 22-12 26 370 220 50

400 400 565 515 482 26-16 26 380 220 50
