CAST STEEL BALL VALVES
Product Quick Detail
- Minimum Order
- 1
- Packaging
- N/A
- Delivery
- 15 Days
Specifications

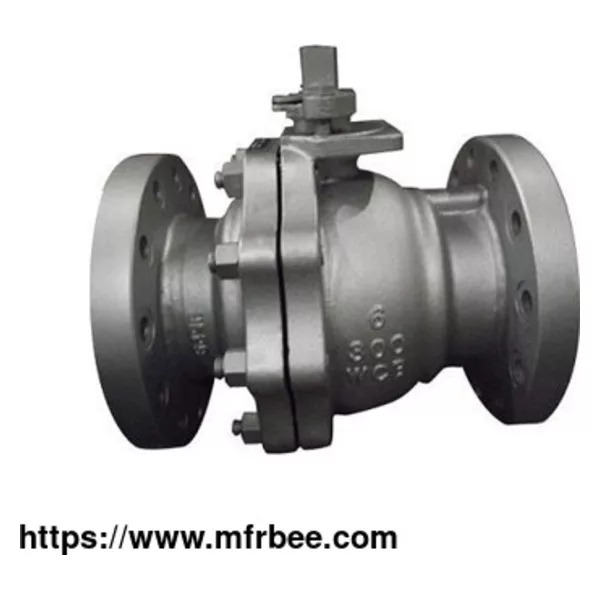

API6D CAST STEEL FLOATING BALL VALVE
MstnLand's series of cast steel ball valves are suitable for opening and closing of water, steam and oil pipelines.
Body material: ASTM A216 WCB
Size range: ½"～8"
Pressure rating: Class 150lb
Operating temperature: -29～150℃
End connection: Flanged
Applicable medium: Water, Steam, Oil.
Mode of operation: Manual
Applicable industry: Chemical & Petrochemical, Oil & Gas, Mining & Minerals, Power generation, Water & Water Treatment, Pulp & Paper, Municipal, Heating & Ventilation
Design & Manufacture: API, ASME, ASTM, ANSI, BS, DIN, JIS, ISO, GB.
WORM GEAR CAST STEEL FLOATING BALL VALVE
MstnLand's series of cast steel floating ball valves are suitable for the pipeline of water, steam, oil and other noncorrosive media with the pressure of ≤ 1.6Mpa for opening and closing.
Body material: WCB
Size range: DN50～200
Pressure rating: 1.6～2.5MPa
Operating temperature: -29～150℃
End connection: Flanged
Applicable medium: Water, Oil, Steam, Other non-corrosive media
Mode of operation: Manual
Applicable industry: Chemical & Petrochemical, Oil & Gas, Mining & Minerals, Power generation, Water & Water Treatment, Pulp & Paper, Municipal, Heating & Ventilation
Design & Manufacture: API, ASME, ASTM, ANSI, BS, DIN, JIS, ISO, GB.
PNEUMATIC CAST STEEL FLOATING BALL VALVE
MstnLand's series of cast steel floating ball valves are suitable for opening and closing the pipeline of water, steam, oil and other noncorrosive media with pressure ≤ 1.6Mpa.
Body material: WCB
Size range: DN15～200
Pressure rating: 1.6～2.5MPa
Operating temperature: -29～150℃
End connection: Flanged
Applicable medium: Water, Oil, Steam
Mode of operation: Pneumatic
Applicable industry: Chemical & Petrochemical, Oil & Gas, Mining & Minerals, Power generation, Water & Water Treatment, Pulp & Paper, Municipal, Heating & Ventilation
Design & Manufacture: API, ASME, ASTM, ANSI, BS, DIN, JIS, ISO, GB.
As one of cast steel ball valve suppliers, we will do our best to meet all the needs of customers.
If you want to know more different types of valves, please visit our website.
