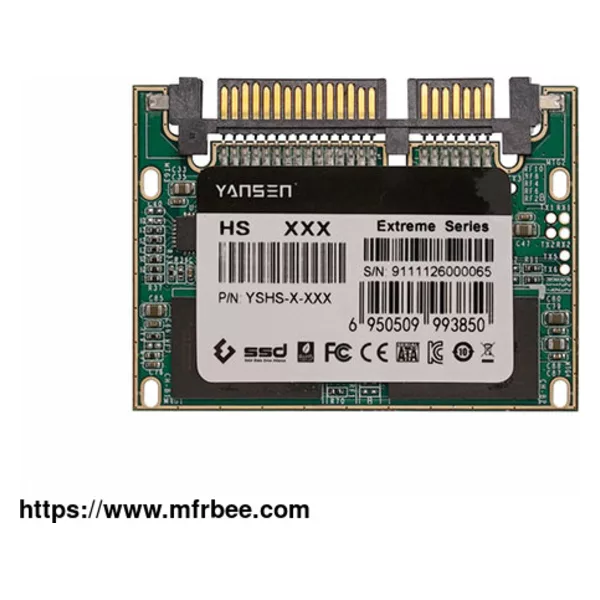

Half Slim

Yansen Half Slim is a well-balanced SATA SSD with MO-297A standard form factor and great performance. Designed in SATA 6 Gb/s interface, the SSD is able to deliver exceptional read/write speed, making it the ideal companion for heavy-loading industrial or server operations.

Yansen Half Slim utilizes 2D NAND and the capacity range is 8GB~256GB, the drive comes with various implementations including powerful hardware ECC engine, power saving modes, wear levelling, flash block management, S.M.A.R.T. and TRIM.

SSD Half MSATA Size Specifications

Product Model YANSEN Half Slim

Flash Type MLC

Capacity 8GB~256GB

Sequential Read Up to 550MB/s

Sequential Write Up to 300MB/s

4K Random Read 21700 IOPS

4K Random Write 22000 IOPS

Operating Temperature -20°C ~ 70°C, -40°C ~ 85°C

Storage Temperature -55°C ~ +95°C

Humidity 5%-95% RH non-condensing

Shock 1500G/0.5ms

Vibration 80Hz~2000Hz/20G

Operating Voltage DC 5V±5%

Power Consumption（MAX） 2.06W

Dimensions L54.0mm*W39.0mm*H4.5mm ±0.15mm

MTBF 2 million hours

Half Slim SATA SSD Advantages

Interface: SATA3.0(6Gb/s)

66bit/1KB BCH ECC Code

Global Wear Leveling

Flash bad-block management

Flash Translation Layer: Page Mapping

S.M.A.R.T is supported.
