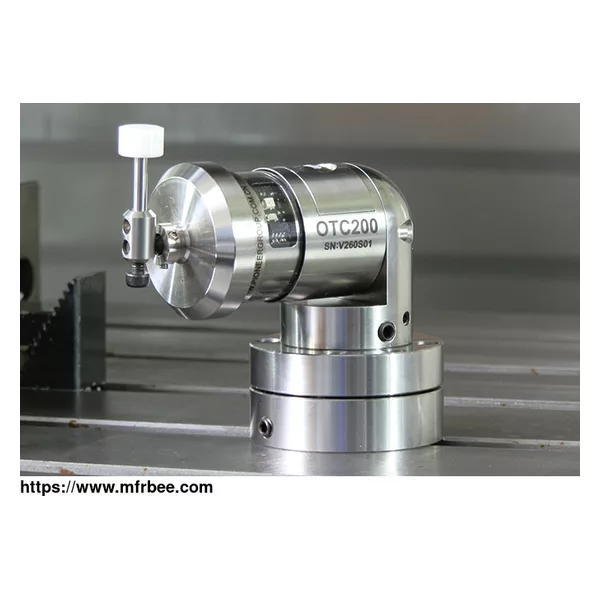

OTC200 optical tool setter is a wireless tool setter, optical coded signals are used to transmit information between the CNC tool setter and the receiver. It mainly used in various specifications
of small to medium machining centers, CNC milling machines, drilling machines center, electronic touch off tool and so on. It used for broken tool detection and rapid measurement of tool length and
diameter on a wide range of tools.
OTC200 optical tool setter/presetter tool is a wireless tool setter, optical coded signals are used to transmit information between the CNC haas tool setter and haas tool presetter and the
receiver. It mainly used in various specifications of small to medium machining centers, CNC milling machines, drilling machines center, electronic touch off tool and so on. It used for broken tool
detection and rapid measurement of tool length and diameter on a wide range of tools.
Drawing of Optical Tool Setter
Technical Characteristics of Optical Tool Setter
Tool setter switch on/off method: M code on/off;
Compatible with Pioneer optical modulated receivers (OSI-20M and OSI-30);
Exceptional resistance to light interference with modulated transmission;
Cable-free for unrestricted machine movement and ease of installation.
Application of Optical Haas Lathe Tool Presetter Calibration and Haas Tool Setter Calibration
For tool measuring on small to medium machining centers.
Detect broken tools in-process
Compensate for environmental and machine conditions
Reduce non-productive time and scrap and increase productivity and profits
As a probe manufacturer, we can offer sorts of machine probe for sale, anything you need, please contact us.
