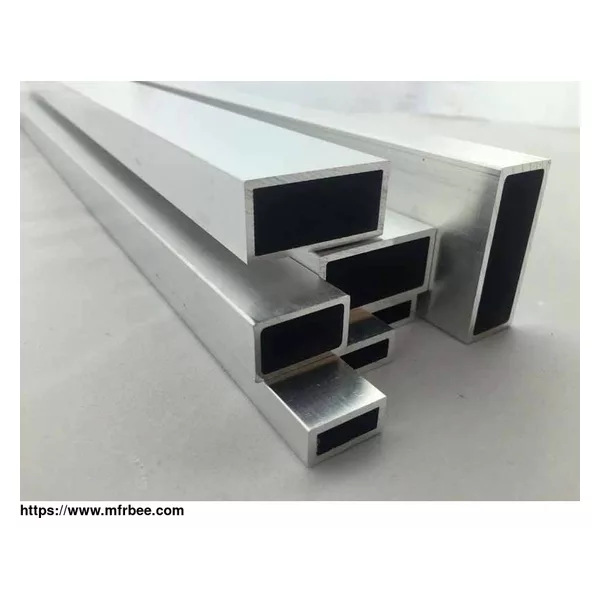

Aluminium Rectangular Tube

Packaging
N/A
Delivery
25 Days
Aluminium profile square tube is frequently used in places where lightweight and corrosion resistance is important. Thus, similar to the square aluminium profile, rectangular aluminium extrusion profile is also widely found in framework, support columns, gates and fencing, handrails and protective barriers.

In Otalum, we offer a wide range of aluminium rectangular profile with a variety of alloys, sizes and finishes. They can be cut to size if the existing products cannot meet your requirements.

Precise cutting to length and processing services are available with the fastest lead time.

Features of extruded aluminum rectangular tubing

Alloy Standard Surface Treatment Further Process Certificate
6005 T5/T6, 6060 T5/T6, 6061 T4/T6, 6063 T5/T6, 6463 T5/T6, 6082 T5/T6, etc. GB 5237-2008, JISH, AAMA, GB, BS, En Mill finish, Powder Coating, Anodizing, Wooden grain, Electrophoresis, PVDF Painting, Sanding blasting, Polishing, etc. Drilling, Bending, Welding, Precise cutting, Punching, Fabrication of finished products, etc. CE, DNV, TUV, ISO9001

Specifications of Aluminum Rectangular Tube


Aluminum Rectangular Tube

B=length, mm

H=height, mm

T=thickness, mm

Weight(kg/m)

Item B H T Weight(kg/m)
SQ12X7X0.8 12 7 0.8 0.076
ZY-CXG02 12 7 1.1 0.1
ZYW0056 12 10 1.5 0.154
SQ14X9X0.8 14 9 0.8 0.092
SQ15X5.6X0.8 15 5.6 0.8 0.082
SQ15X10X0.9 15 10 0.9 0.114
ZY-157-008 15.5 10 1.5 0.184
ZY-157-002 16 10 1.5 0.186
ZY66237 18 5 1 0.113
ZY66236 18 7 1 0.124
SQ18X12X1.5 18 12 1.5 0.219
SQ19X13X1.2 19 13 1.2 0.194
SQ1916T16 19 16 1.6 0.275
SQ20X10X0.8 20 10 0.8 0.123
ARC051 20 10 1 0.151

If you want to know more about aluminium rectangular tube price, please contact us.

As a professional aluminium profile supplier, we will do our best to meet all the needs of customers.
