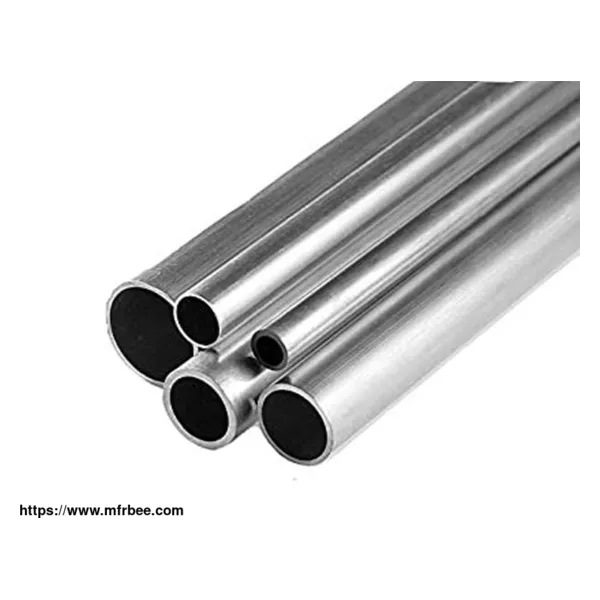

Aluminium round pipe or tube is used in a lot of structural applications. It is also popular in the transportation industry (like bicycle frames) due to its lightweight. It is measured by initially
taking the outside diameter and then the wall thickness.
In Otalum, we offer a wide range of extruded aluminum tubing round/pipe with a variety of alloys, sizes and finishes. Moreover, all of our round extruded aluminum tubes can also be cut to different
sizes in case the existing products cannot meet your personal needs.
As a professional round aluminum extrusion factory, Otalum provides precise cutting to length and diverse processing services with the fastest lead time.
Features of Round Tube Aluminium
Alloy Standard Surface Treatment Further Process Certificate
6005 T5/T6, 6060 T5/T6, 6061 T4/T6, 6063 T5/T6, 6463 T5/T6, 6082 T5/T6, etc. GB 5237-2008, JISH, AAMA, GB, BS, En Mill finish, Powder Coating, Anodizing, Wooden grain, Electrophoresis, PVDF
Painting, Sanding blasting, Polishing, etc. Drilling, Bending, Welding, Precise cutting, Punching, Fabrication of finished products, etc. CE, DNV, TUV, ISO9001
Specifications of Round Aluminum Profile Tube
Aluminum Round Tube
B=length, mm
D=diameter, mm
Weight(kg/m)
Item D T Weight(kg/m)
ARC070 6 1 0.043
ZY-236-CHB0442 6.35 0.95 0.043
RD7.93R1.42 7.39 1.42 0.078
ZY-DSSX13 7.8 1.4 0.076
ZY-236-CHB0441 7.9 0.95 0.057
RD7.93R1.42 7.93 1.42 0.078
ARC057 8 1 0.059
CF-RD8012 8 1.2 0.07
ZY-286-147 9 0.9 0.063
ZY-236-CHB0440 9.5 0.95 0.07
ZY-236-CHB0400 9.5 1.2 0.084
AV1103R 10 1 0.076
ZY-050-063 10 1.5 0.108
AI-RD10R16 10 1.6 0.113
ZY-438-194 11 1.2 0.1
There are many aluminium extrusion suppliers in China, but we are one of the best choices for you.
