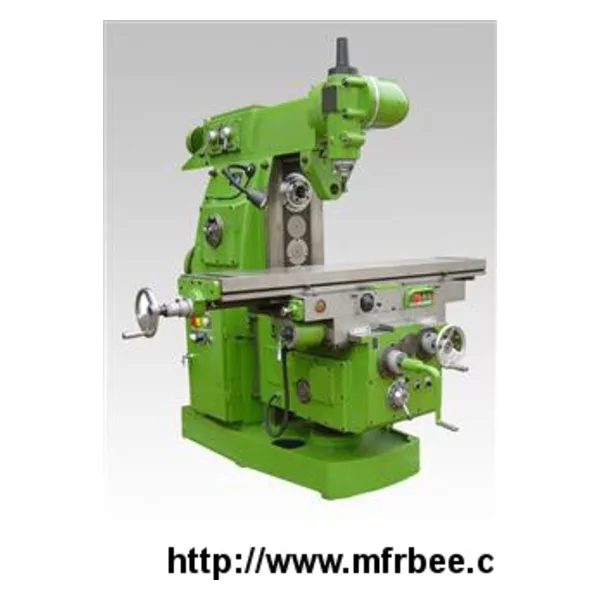

Universal Milling Machine X6235
Product Quick Detail
- Packaging
- N/A
- Delivery
- 15 Days
Specifications
Item X6235
worktable area(width*length): 350*1600mm or 350*2000mm
Max. longitudinal travel(manual)/(power) 1000/900mm or 1400/1300mm
Max. transversal travel(manual)/(power) 300/280mm
Max. vertical travel(manual)/(power) 430/400mm
T-slots(number of slot-width*pitch) 5-18*65mm
Distance from center line of horizontal spindle to table surface 30-430mm
Distance from vertical spindle nose to table 50-550mm
Horizontal Spindle taper 7:24/ISO50
Vertical spindle taper 7:24/ISO40
Max.swivel angle of universal rotary head 360°
Max.swivel angle of table ±45°
Spindle speed range (horizontal/vertical) 35-700/90-1450r/min
Table feed range (longitudinal/cross) 15-750mm/min
Table feed range(vertical) 5-250mm/min
Fast moving of table(longitudinal cross/vertical) 1920/640mm/min
Main Power(horizontal/vertical) 7.5/3KW
Feed motor 1.9/1.3kw
Motor of coolant 0.125kw
Packing Size(L×W×H) 2190×2230×2140mm
Net weight 3200/3500kg
