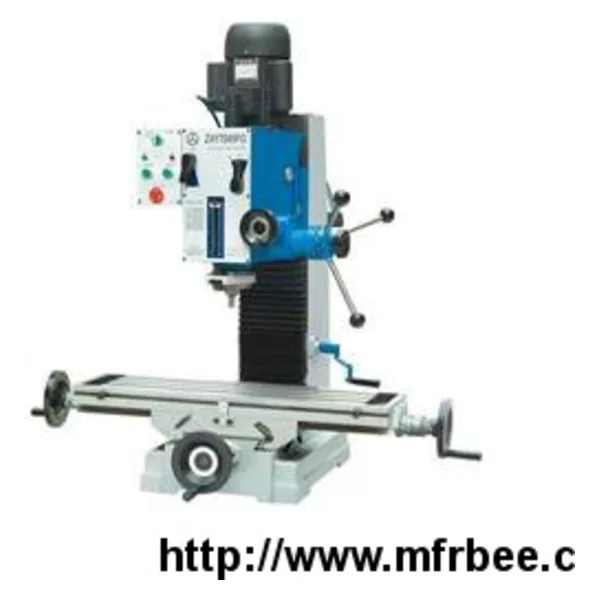

Drill Mill Machine ZAY7045FG

Model ZAY7025FG ZAY7032FG ZAY7040FG ZAY7045FG Max Face mill capacity 25mm 32mm 40mm 45mm Max End mill capacity 63mm 63mm 80mm 80mm End milling capacity 20mm 20mm 32mm 32mm Max.distance from spindle nose to table 445mm 450mm 450mm 450mm Min.distance from spindle axis to column 203mm 260mm 260mm 260mm Spindle travel 85mm 130mm 130mm 130mm Spindle taper M.T.3 or R8 M.T.3 or R8 M.T.4 or R8 M.T.4 or R8 Step of spindle speed 6 6 6 6 Range of spindle speed 50Hz 95-1420 r.p.m 80-1250 r.p.m 80-1250 r.p.m 80-1250 r.p.m 60Hz 115-1700 r.p.m 95-1500 r.p.m 95-1500 r.p.m 95-1500 r.p.m Swivel angleof headstock(perpendicularly) 90° 90° 90° 90° Table size 520×160mm 800×240mm 800×240mm 800×240mm Forward and backward travel of table 140mm 175mm 175mm 175mm Left and right travel of table 290mm 500mm 500mm 500mm Motor Power 0.37KW 0.75KW(1HP) 1.1KW(1.5HP) 1.5KW(2HP) Voltage/frequency As customer's requirement As customer's requirement As customer's requirement As customer's requirement Net weight/gross weight 180kg/240kg 320kg/370kg 323kg/373kg 325kg/375kg Packing size 680×750×1000mm 770×880×1160mm 770×880×1160mm 770×880×1160mm
