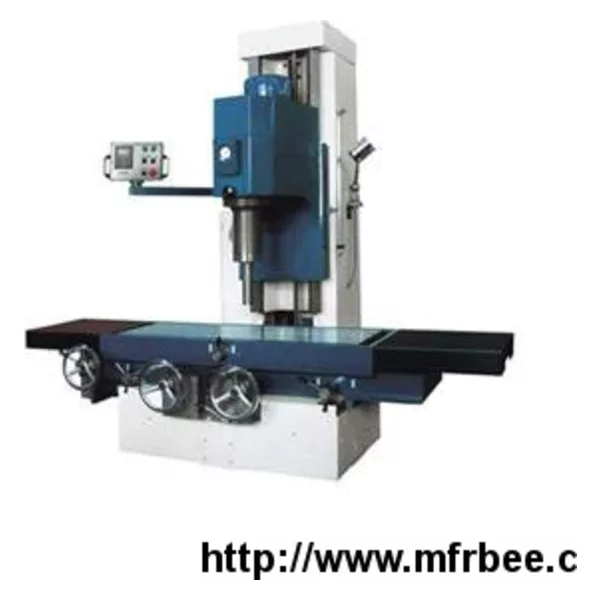

Cylinder Boring Machine TX200

Packaging
N/A
Delivery
15 Days

Model T200A T250A TX200A TX250A TXM200A TXM250A
Max. boring diameter Φ 200mm Φ 250 mm Φ 200 mm Φ 250 mm Φ 200 mm Φ 250 mm
Max. boring depth 500 mm 500 mm 500 mm 500 mm 500 mm 500 mm
Max. milling area - 400x1000 mm 400× 1000 mm
Max. grinding area - - 400× 1000 mm
Max. drilling & reaming diameter Φ 30 mm Φ 30 mm Φ 30 mm
Spindle speed 120-860 r/min 120-860 r/min 120-1200 r/min
Feeding of the spindle 14-900 mm/min 14-900 mm/min 14-900 mm/min
Rapid moving speed of the spindle 1000 mm 1000 mm/min 1000 mm/min
Spindle travel 700 mm 700 mm 700 mm
Distance between spindle end face and table 0-700 mm 0-700 mm 0-700 mm
Distance between spindle axis and carriage vertical plane 375 mm 375 mm 375 mm
Feed of work table longitudinal - 32-1350 mm/min 32-1350 mm/min
Rapid moving speed of the table longitudinal travel - 32-1350 mm/min 32-1350 mm/min
Max longitudinal travel of working table 1500 mm 1500 mm 1500 mm
Max cross travel of the working table 200 mm 200 mm 200 mm
Working table size (W× L) 500× 1500 mm 500× 1500 mm 500× 1250 mm 500× 1500 mm
Quantity of “ T” Slot 5 qua. 5 qua. 5 qua.
Main motor 5.5 Kw 5.5 Kw 5.5 Kw
Boring precision Boring roughness Ra 2.5 Ra 2.5 Ra 2.5
Milling - Ra 3.2 Ra 3.2
Grinding - - Ra 0.8
Overall dimensions (L× W× H) 2600× 1630× 2300 mm 2600× 1630× 2300 mm 2600× 1630× 2300mm
Packing dimensions (L× W× H) 2250× 1900× 2280 mm 2250× 1900× 2280 mm 2250× 1900× 2280mm
N. W. /G. W. 3500/3800 kg 3500/3800 kg 3500/3800 kg
