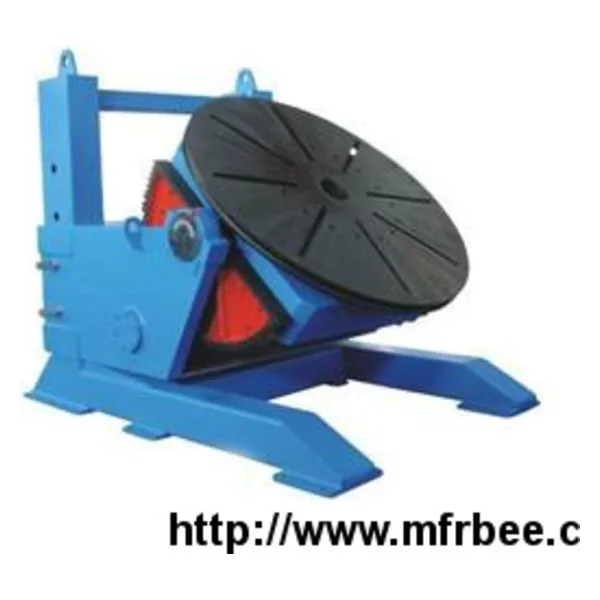

Welding Position HB

Model HB1 HB3 HB6 HB12 HB20 HB30 HB50 HB80 HB100 HB150 HB200 HB300 HB500
Rated loading weight kg 100 300 600 1200 2000 3000 5000 8000 10000 15000 20000 30000 50000
Revolving speed rpm 0.1-1 0.2-2 0.1-1.1 0.1-1 0.09-0.9 0.08-0.8 0.07-0.7 0.06-0.6 0.06-0.6 0.05-0.5 0.05-0.5 0.04-0.4 0.04-0.4
Tilting speedrpm 2 ≈0.9 ≈0.8 ≈0.5 ≈0.4 ≈0.3 ≈0.2 ≈0.14 ≈0.14 ≈0.14 ≈0.14 ≈0.10 ≈0.10
Table diameter mm 400 600 800 1000 1200 1400 1600 2000 2000 2200 2500 3000 4000
Max eccentricity distance mm 100 150 150 200 250 250 250 200 200 200 200 200 200
Max gravity center disgance mm 150 200 250 250 300 400 400 400 400 500 630 630 800
Table tiling angle 0-120 0-120 0-120 0-120 0-120 0-120 0-120 0-120 0-120 0-120 0-120 0-120 0-120
Revolving motor kW 0.06 0.37 0.37 0.75 1.1 1.5 1.5 2.2 3 3 4 7.5 11
Tilting motor kW 0.18 0.37 0.55 1.1 1.5 2.2 3 4 4 5.5 7.5 11 18.5
Revoltaing dia at 90°mm ≤600 ≤1000 ≤1500 ≤1500 ≤2000 ≤2300 ≤2800 ≤3200 ≤3200 ≤3400 ≤3400 ≤4200 ≤5700
Machine weight kg 70 260 700 1000 2000 3350 4300 8000 8200 14000 17000 20000 27000
Speed control variable speed
